FA + S8 Series

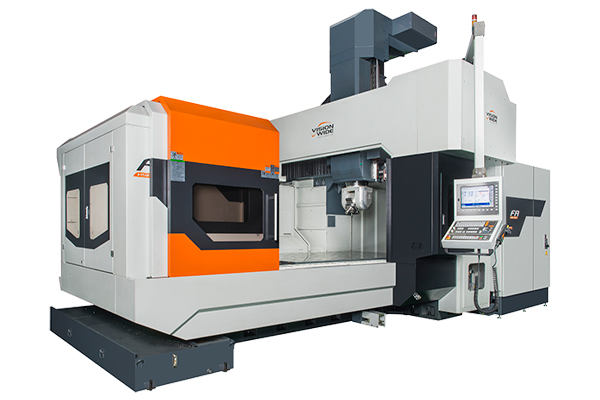

5-axis Machining Center FA + S8 Series
  • FA series, the first 5-axis bridge type CNC milling machining center of Vision Wide, was released in 2014, and it provided excellent 5-axis simultaneous accuracy performance for 5-axis machining in mold cutting, highly precise contour finishing, milling, drilling, and tapping.

    Vision Wide manufactured the 5-axis machining center to shorten tool displacement travel and cutting process effectively, and to extend tool lifetime and offer the best choice for composite angle machining. FA series had excellent dynamic performance on XYZ axes and equipped high accuracy 2-axis head to achieve 5-axis simultaneous accuracy performance.

    • Structural rigidity was optimized by double column/bridge type structure design enabling wider machining range.
    • 5 axis dynamic rotation synchronization accuracy (TCPM) 0.04mm
    • Auto measurement compensation for rotation axis accuracy
    • Spindle vibration lower than 1 mm/sec
    • Auto measurement compensation for tool accuracy
    • Not affect by spindle thermal variation and environment temperature change, thermal elongation less than 0.02mm
    • Multi-axis synchronous head machining accuracy to meet the demand of parts processing
  • Model Unit FA-2123 FA-2623 FA-3123 FA-4123
    Travel
    X axis mm 2,100 2,600 3,100 4,100
    Y axis mm 2,300 2,300 2,300 2,300
    Z axis mm 800 800 800 800
    Table
    Dimension mm 2,000 x 1,500 2,500 x 1,500 3,000 x 1,500 4,000 x 1,500
    T-slot (Dimension x Number x Pitch) mm 22 x 9 x 160 22 x 9 x 160 22 x 9 x 160 22 x 9 x 160
    Max. table load kg 8,000 9,000 10,000 12,000
    Spindle
    Spindle motor (cont./30 min rated) kW 20/26 20/26 20/26 20/26
    Spindle speed  rpm 20,000 20,000 20,000 20,000
    Spindel taper - HSK-A63 HSK-A63 HSK-A63 HSK-A63
    Feed
    Cutting federate mm/ min 1-10,000 1-10,000 1-10,000 1-10,000
    Rapid traverse m/min X:24 Y:20 Z:15 X:24 Y:20 Z:15 X:24 Y:20 Z:15 X:18 Y:20 Z:15
    Accuracy
    Positioning accuarcy
    (JIS B6333 /ISO 10791)
    mm ±0.005 / 300,
    ±0.008 / full travel
    ±0.005 / 300,
    ±0.008 / full travel
    ±0.005 / 300,
    ±0.008 / full travel
    ±0.005 / 300,
    ±0.008 / full travel
    mm P0.016 P0.016 P0.018 P0.018
    Repeatability accuracy
    (JIS B6333 /ISO 10791)
    mm ±0.002 ±0.002 ±0.002 ±0.002
    mm Ps0.015 Ps0.015 Ps0.015 Ps0.015
    ATC
    ATC capacity  Vertical pcs 24 ( 32 / 40 OPT.) 24 ( 32 / 40 OPT.) 24 ( 32 / 40 OPT.) 24 ( 32 / 40 OPT.)
    Others
    Machine gross weight kg 31,000 33,500 38,500 43,500
    Max. space (LxWxH) m 8 x 8 x 4.5 9 x 8 x 4.5 10 x 8 x 4.5 12 x 8 x 4.5

  • Standard Accessory & Function
    1. HEIDENHAIN TNC640 controller
    2. Spindle 20,000rpm with tool shank HSK-A63
    3. Blum TC 60 auto measurement compensation of rotation axis accuracy
    4. HEIDENHAIN DCM (Dynamic Collision Monitoring) function
    5. 2-axis head central control and monitoring protection system:
      Spindle cutting vibration protection
      Spindle and motor overloading protection
      B/C rotating motor overloading protection
      Spindle overloading protected by software
    6. Spindle and structure temperature thermal compensation system
    7. Spindle cooling device
    8. 24 tools magazine with ATC
    9. Centralized auto lubrication system
    10. Independent lubrication oil collector
    11. Air blast through spindle
    12. Wash gun and pneumatic interface
    13. Spindle ring coolant nozzle
    14. Cutting fluid cooling system
    15. Enclosed sheet metal guard (Without roof)
    16. Swiveling arm type operation panel
    17. Screw type chip conveyor on table side
    18. Caterpillar type chip conveyor
    19. Air conditioner for electrical cabinet
    20. Working lamp
    21. Operation cycle finish and alarm light
    22. Movable manual pulse generator
    23. Footswitch for tool clamping
    24. RJ45 interface
    25. XYZ axis linear scale feedback
    26. XYZ axis travel hard limits protection
    27. Remote monitoring software-Standard (Not available for Siemens controller)
    28. Auto power off function
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits
    Optional Accessory & Function
    1. Sub working table
    2. Coolant through spindle system
    3. Oil mist cooling device
    4. 32/40 tool magazine with ATC
    5. Overhead pendulum type operation panel
    6. Chip auger on table side
    7. Chip cart
    8. Independent manual pulse generator
    9. Remote monitoring software-Professional (Not available for Siemens controller)
    10. Auto tool length measurement
    11. Transformer
    12. Enclosed sheet metal guard with roof
    13. Oil mist recycle device
    14. Oil skimmer
