HF Series

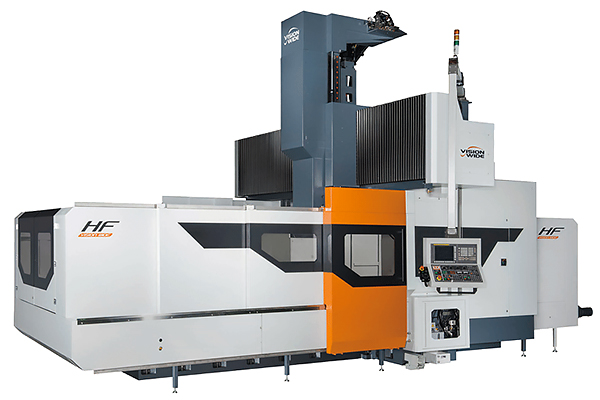

3-Axis CNC Machining Center HF Series

  • HF series, the 3-axis bridge type CNC milling machining center, is one of the proudest products of Vision Wide which fulfills automatic 5-face machining with super rigidity structure and high positioning accuracy, and its X travel ranges from 4,100mm to 10,100mm, and Y travel ranges from 3,500mm to 4,700mm. HF satisfies demands in mold surface cutting, angles cutting, 3D mold cutting, and precise contour finishing.

    We developed tool center point compensation, auto multi-angle head attachment, and auto tool change system to complete auto 5-face machining.

    • High rigidity box base, best span worktable guideways, and wider load dimension ensured the best level of dynamic accuracy.
    • Cross-section square beam enabled the center of the head close to the beam center to ensure the heavy cutting ability.
    • Fully auto 5-face machining capacity
      • Auto head change: 90º head/extension head / universal head
      • Vertical and horizontal auto tool change for 90º head
      • AC 3-axis mechanical coordinates system
  • Model Unit HF-4235 /HF-4242 HF-5235 /HF-5242 HF-6235 /HF-6242 HF-8235 /HF-8242 HF-10235 /HF-10242
    X axis travel mm 4,100 5,100 6,100 8,100 10,100
    Y axis travel mm 3,500/ 4,200
    Z axis travel Box way / single ballscrew mm 920 ; 1,020(Opt.)
    Linear way, Enclosed Box Ram/Dual ballscrews mm 1,000(Opt.) ; 1,200(Opt.) ; 1,400(Opt.)
    Table dimension mm 4,000×3,000 5,000×3,000 6,000×3,000 8,000×3,000 10,000×3,000
    Max. table load kg 20,000 24,000 28,000 32,000 36,000
    Spindle motor power(cont./30 min. rated) kW 22/26(30/37Opt.)
    Spindle speed Box way /
    Single ballscrew    		 2-step gear rpm 4,000 ; 6,000(Opt.)
    Linear way, Enclosed Box Ram/Dual ballscrews 2-step gear rpm 4,000 ; 6,000(Opt.)
    Direct-driven rpm 10,000(Opt.)
    Cutting federate mm/min 1-7,000
    Rapid traverse X axis m/min 10 8
    Y axis m/min 10/10
    Zaxis Box way / Single ballscrew
    Linear way/ Dual ballscrews    		 m/min 15
    Enclosed Box Ram/Dual ballscrews m/min 12
    ATC capacity Vertical type tool change pcs 32 / 40 (Opt.) / 60 (Opt.)
    Floor-standing type vertical tool change pcs 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
    Floor-standing type vertical-horizontal tool change pcs 32 (Opt.) / 40 (Opt.) / 60 (Opt.)

    Model Unit HF-4240 /HF-4247 HF-5240 /HF-5247 HF-6240 /HF-6247 HF-8240 /HF-8247 HF-10240 /HF-10247
    X axis travel mm 4,100 5,100 6,100 8,100 10,100
    Y axis travel mm 4,000/ 4,700
    Z axis travel Box way / single ballscrew mm 920 ; 1,020(Opt.)
    Linear way, Enclosed Box Ram/Dual ballscrews mm 1,000(Opt.) ; 1,200(Opt.) ; 1,400(Opt.)
    Table dimension mm 4,000×3,500 5,000×3,500 6,000×3,500 8,000×3,500 10,000×3,500
    Max. table load kg 20,000 24,000 28,000 32,000 36,000
    Spindle motor power(cont./30 min. rated) kW 22/26(30/37Opt.)
    Spindle speed Box way /
    Single ballscrew    		 2-step gear rpm 4,000 ; 6,000(Opt.)
    Linear way, Enclosed Box Ram/Dual ballscrews 2-step gear rpm 4,000 ; 6,000(Opt.)
    Direct-driven rpm 10,000(Opt.)
    Cutting federate mm/min 1-7,000
    Rapid traverse X axis m/min 10 8
    Y axis m/min 10/10
    Zaxis Box way / Single ballscrew
    Linear way/ Dual ballscrews    		 m/min 15
    Enclosed Box Ram/Dual ballscrews m/min 12
    ATC capacity Vertical type tool change pcs 32 / 40 (Opt.) / 60 (Opt.)
    Floor-standing type vertical tool change pcs 32 (Opt.) / 40 (Opt.) / 60 (Opt.)
    Floor-standing type vertical-horizontal tool change pcs 32 (Opt.) / 40 (Opt.) / 60 (Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. FANUC 0iMF PLUS controller
    2. Box way 4,000rpm 2-step gear type spindle
    3. Z axis travel 920mm (Box way)
    4. Spindle cooling system
    5. Twin hydraulic cylinders with pressured Nitrogen auxiliary counterweight system
    6. X, Y axis ballscrew support device (X axis ≧4m，Y axis ≧3m)
    7. Centralized auto lubrication system
    8. Independent lubrication oil collector
    9. Air blast through spindle
    10. Wash gun and pneumatic interface
    11. Cutting fluid cooling system
    12. Vertical type tool magazine 32 tools
    13. Enclosed sheet metal guard without roof (NF series X axis ≦6m)
    14. Four piece  sheet metal guard (NF series X axis ≧ 8m) (all HF series)
    15. Screw type chip conveyor on table sides
    16. Caterpillar type chip conveyor / Water tank
    17. Heat exchanger for electrical cabinet
    18. Swiveling arm type operation panel
    19. Working lamp
    20. Operation cycle finish and alarm light
    21. Movable manual pulse generator
    22. Footswitch for tool clamping
    23. RJ45 interface
    24. XYZ-axis absolute pulse coder feedback
    25. XYZ-axis travel hard limits protection
    26. Spindle cutting load software protection
    27. Auto power off function
    28. Vision Wide FX graphical user interface
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits
    31. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. FANUC 31iB/ SIEMENS 828D / HEIDENHAIN TNC640/ SIEMENS ONE / MITSUBISHI M80 TypeA/ MITSUBISHI M830 controller
    2. Box way :
      6,000rpm 2-step gear type spindle
    3. Linear way/Enclosed Box Ram :
      4,000/6,000rpm 2-step gear type spindle
      10,000/12,000rpm direct driven type spindle
      8,000/12,000rpm Built-in type spindle
    4. Z axis travel 1,020mm (Box way)
    5. Z axis travel 1000/1200/1400mm
      (Linear way/Enclosed Box Ram，for gear/ direct-driven / built-in type spindle)
    6. Column heighten 200/400/600/800mm
    7. Spindle ring cutting coolant device（for no head attachment）
    8. Coolant through spindle system 20/70 bar
    9. Coolant through tool holder 5/18 bar cutting fluid system
    10. Oil skimmer
    11. Oil mist cooling device
    12. Oil mist recycle device
    13. Vertical type tool magazine 40/60 tools
    14. Floor-standing vertical type tool magazine 40/60 tools
    15. Floor-standing vertical-horizontal type tool magazine 40/60/90 tools
    16. Four piece  sheet metal guard（NF series X axis ≦ 6m）
    17. Enclosed sheet metal guard with roof（NF series X axis ≦ 6m）（not for NF-xx32/39 and HF series）
    18. Enclosed sheet metal guard without roof（NF series X axis ≧ 8m）（all HF series）
    19. Helical bladed screw conveyor on table sides
    20. Chip cart
    21. Air conditioning for electrical cabinet
    22. Wireless remote control manual pulse generator
    23. 3-axis independent manual pulse generator（Only for FANUC）
    24. XYZ axis linear scale feedback
    25. Sub working table
    26. Rotary table
    27. Interface reserved for fourth axis
    28. The interface of coolant through spindle
    29. Z-axis retract function at power failure
    30. Auto measurement system
    31. Auto warm up
    32. Transformer
    33. Spindle and structure temperature thermal compensation system
    34. Switch for tool clamping


  • HF-Application of 5-Face Machining
