MHN Series

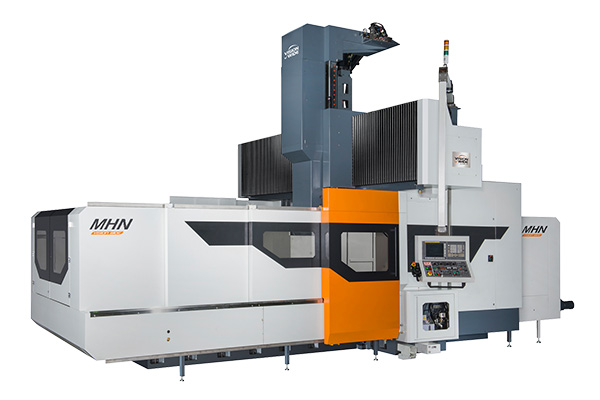

Bridge-type Milling Machine MHN Series
    • With Vision Wide tradition in making high rigidity machine structure, MHN series not only plays a high precision indicator in 5-face machining centers but also provides a full range of high efficiency cutting performance through its rigidity structure design and excellent geometric accuracy.
    • More than 1,1m height of rigidity stepped beam structure efficiency enhances guide way span and provides Y-axis straightness and rigidity needed for heavy cutting.
    • Y-axis with 65mm ultra-load guide way not only enhances more than 40% rigidity on higher cutting load but also extends longer lifetime.
    • Full stroke supported design, thick and extra-wide design size of bed structure with highly rigid structure, increases table load capacity and workpiece movement dynamic level, reaches the cutting stability and enhances anti-vibration.
    • One-piece casting column structure with thick column section size, effectively link the rigidity of beam and base, enhancing YZ-axis machining rigidity.
    • XY-axis precision supporter mechanism prevent ball screw sag, enhance higher positioning accuracy, and ensure ball screw lifetime (X-axis travel＞4m, Y-axis travel＞3m)
    • Minimum distance between spindle center and Z-axis roller way not only shortens cutting lever arm but also significantly improves cutting rigidity.
  • MODEL UNIT MHN-4235/42 MHN-5235/42 MHN-6235/42 MHN-8235/42 MHN-10235/42 MHN-4240/47 MHN-5240/47 MHN-6240/47 MHN-8240/47 MHN-10240/47
    X axis mm 4,200 5,200 6,200 8,200 10,200 4,200 5,200 6,200 8,200 10,200
    Y axis mm 3,500/4,200 4,000/4,700
    Z axis Box way mm 920/1,020(opt.) 920/1,020(opt.)
    Linear way mm 1,000(opt.)/1,200(opt.)/1,400(opt.) 1,000(opt.)/1,200(opt.)/1,400(opt.)
    Table dimension mm 4,000×
    3,000    		 5,000×
    3,000    		 6,000×
    3,000    		 8,000×
    3,000    		 10,000×
    3,000    		 4,000×
    3,500    		 5,000×
    3,500    		 6,000×
    3,500    		 8,000×
    3,500    		 10,000×
    3,500
    Max. table load kg 20,000 24,000 28,000 32,000 36,000 20,000 24,000 28,000 32,000 36,000
    SPINDLE
    (Continuous/ 30 minutes rated)    		 kW 22/26(30/37opt.) 22/26(30/37opt.)
    Spindle speed Box way 2-step gear rpm 4,000/6,000(opt.) 4,000/6,000(opt.)
    Belt-driven rpm 8,000/10,000(opt.) 8,000/10,000(opt.)
    Linear way 2-step gear rpm 22/26kW: 4,000/6,000(opt.) ; 30/37kW: 3000(opt.)/5500(opt.) 22/26kW: 4,000/6,000(opt.) ; 30/37kW: 3000(opt.)/5500(opt.)
    Direct-driven rpm 10,000(opt.) 10,000(opt.)
    Cutting feed rate mm/min 1-7,000 1-7,000
    Rapid traverse m/min X:10 Y：10 Z：12 X:10 Y：10 Z：12 X：8 Y：10 Z：12 X：8 Y：10 Z：12 X：8 Y：10 Z：12 X:10 Y：10 Z：12 X:10 Y：10 Z：12 X：8 Y：10 Z：12 X：8 Y：10 Z：12 X：8 Y：10 Z：12
    Machine net weight Kg 57,000 /
    59,000    		 63,000 /
    65,000    		 69,000 /
    71,000    		 83,000 /
    85,000    		 99,000 /
    100,000    		 58,000 /
    60,000    		 64,000 /
    66,000    		 70,000 /
    72,000    		 84,000 /
    86,000    		 100,000 /
    101,000
    Machine gross weight kg 61,000 /
    63,000    		 68,000 /
    70,000    		 75,000 /
    77,000    		 91,000 /
    93,000    		 107,000 /
    108,000    		 62,000 /
    64,000    		 69,000 /
    71,000    		 76,000 /
    78,000    		 92,000 /
    94,000    		 108,000 /
    110,000

  • Standard Accessory & Function
    1. FANUC 0iMD controller
    2. Box way 4,000rpm 2-step gear type spindle
    3. Spindle oil cooling device
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. X, Y-axis ball screw support device（X axis 4m above）
    6. Centralized auto lubrication system
    7. Independent lubrication oil collector
    8. Air blast through spindle
    9. Wash gun and pneumatic interface
    10. Cutting fluid cooling system
    11. Four piece splash guard
    12. Swiveling arm type operation panel
    13. Screw type chip conveyor on table sides
    14. Caterpillar type chip conveyor
    15. Heat exchanger for electrical cabinet
    16. Working lamp
    17. Operation cycle finish and alarm light
    18. Movable manual pulse generator
    19. Footswitch for tool clamping
    20. RS232 and RJ45 interface
    21. XYZ-axis absolute pulse coder feedback
    22. XYZ-axis travel hard limits protection
    23. Spindle cutting load software protection
    24. Auto power off function
    25. Vision Wide FX graphical user interface
    26. Foundation pads and bolts kits
    27. Adjustment tool and tool kits
    28. Technical manuals(operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 6,000rpm 2-step gear type spindle
    2. 8,000/ 10,000rpm direct driven/ belt type spindle
    3. Z axis travel 1,020mm(box way spindle, for gear/ belt type spindle)
      (Unavailable with vertical-horizontal type auto tool change, multi-heads magazine on magazine side)
    4. Z axis travel 1,000/1,200/1,400mm(linear way spindle, for gear/ direct driven type spindle)
    5. 200/ 300/ 400/ 500/ 600/ 800 mm higher column
    6. Spindle ring cutting coolant device(for without head attachment)
    7. Coolant through spindle system 20/70 bar(Vertical spindle)
    8. Coolant through tool holder interface
    9. Coolant through tool holder 5/20 bar cutting fluid interface
    10. Oil skimmer
    11. Oil mist cooling device
    12. Enclosed splash guard(without roof)
    13. Overhead pendulum type operation panel
    14. Chip auger on table sides
    15. Chip cart
    16. Air conditioner for electrical cabinet
    17. XYZ-axis linear scale feedback
    18. 3-axis independent manual pulse generator
    19. Sub working table
    20. Rotary table
    21. Interface preparation for fourth axis
    22. Z-axis retract function at power failure
    23. Auto workpiece measurement
    24. Transformer
    25. Auto warm up
