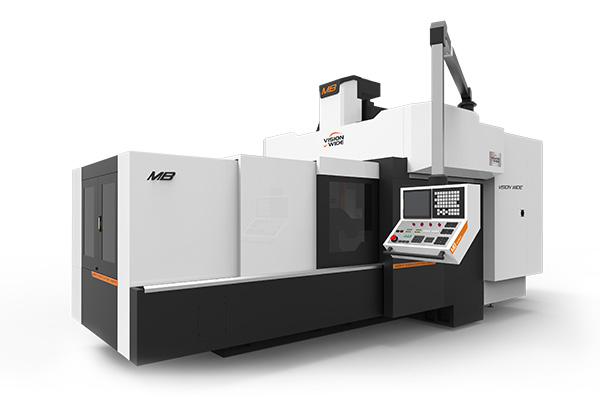

Bridge-type Milling Machine MB Series
    • MB series machines, with typical VW product features of rigid structure and high precision, are designed with box ways with hand scrapping, cutting vibration adapting, and precise power transmission to get efficient, rigid, and accurate cutting.
    • Wide base with solid columns and beam, providing the best structure stiffness to ensure the best geometric accuracy of 3-axis travel.
    • Full casting components with square guideways coated with precision scrapping to ensure the best stiffness and low friction. (MB/MF)
    • One piece casting for gear head transmission and headstock. Z-axis is at the symmetrical position of the spindle motor, offering accuracy and precision with micro smooth movement. (MS/MB/MF/MN/MH)
    • Using Japan-made JIS0 gears for the gear head to get the advantages of high rigidity, high precision, and low noise.
    • Twin Hydraulic cylinders plus pressured nitrogen accumulator balancing design provide smooth & accurate feeding performance. Cylinders are self-alignment, balancing force is set optimally by an adjustable pressure valve. (MS/MB/MF/MH)
    • Square guideway: Direct lubrication offering to the gibs on 3 axes box ways ensures 100% lubrication certainness. (MB/MF)
    • The hanged & swivel able operation panel & Multilayers front door offer a friendly and safe operation interface. (MS/MB/MF/MN/MH)
    • Tool Magazine, side-mounted on the column, make the machine with a compact design. Cam-type ATC has the tool-to-tool changing in 3 sec. Random setting and Large Tool Management help to get the best operational efficiency. (MB/MF/MS/MN/MH)
  • Model Unit MB-2016 MB-2516 MB-3016 MB-2020 MB-2520 MB-3020 MB-4020
    X axis travel mm 2,000 2,500 3,100 2,000 2,500 3,100 4,100
    Y axis travel mm 1,600 2,000
    Z axis travel mm 800/1,020(OPT.) 800/1,020(OPT..)
    Table dimension mm 2,000×1,300 2,500×1,300 3,100×1,300 2,000×1,700 2,500×1,700 3,100×1,700 4,100×1,700
    Max. table load kg 8,000 9,000 10,000 9,000 10,000 11,000 12,000
    Spindle motor power
    (cont./ 30 min rated)    		 kW 18.5/22 (22/26 OPT.)(30/37 OPT.) 18.5/22 (22/26 OPT.)(30/37 OPT.)
    Spindle speed rpm 4,000/6,000(OPT.) 4,000/6,000(OPT.)
    Cutting federate mm/min 1-7,000 1-7000
    Rapid traverse (X/Y/Z) m/min X/Y/Z：15 X Y:12  Z:15 X/Y/Z：15 X/Y：12，Z：15
    ATC capacity pcs 32/40(OPT.) 32/40(OPT.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. Fanuc 0iMF PLUS Controller
    2. 4,000 rpm two-step gear spindle
    3. Spindle oil cooler
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. X-axis ball screw supporter ( X > 4m above)
    6. Centralized auto lubrication system
    7. Independent lubrication oil collector
    8. Ball screw cooling system
    9. Air blast through spindle
    10. Wash gun and pneumatic interface
    11. Cutting fluid cooling system
    12. 40/O51:O6960 tools magazine with arm type ATC
    13. Swiveling arm type operation panel
    14. Screw type chip conveyor on table sides
    15. Caterpillar type chip conveyor / Water tank
    16. Heat exchanger for electrical cabinet
    17. Working lamp
    18. Operation cycle finish and alarm light
    19. Movable manual pulse generator
    20. Footswitch for tool clamping
    21. RJ45 interface
    22. XYZ-axis absolute pulse coder feedback
    23. XYZ-axis travel hard limits protection
    24. Spindle cutting load software protection
    25. Remote monitoring software-Standard
    26. Auto power off
    27. Vision Wide FX graphical user interface
    28. Foundation pads and bolts kits
    29. Adjustment tool and tool kits
    30. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 6,000 rpm 2-step gear spindle
    2. 8,000/10,000 rpm belt-driven spindle
    3. Z-axis travel 1,020mm
    4. 200/300/400/500 mm higher column
    5. The interface of coolant through spindle
    6. Coolant through spindle system 20/70 bar
    7. Coolant through tool holder interface
    8. Coolant through tool holder 5/20 bar cutting fluid interface
    9. Oil skimmer
    10. Oil mist cooling device
    11. Spindle ring cutting coolant device ( for no head attachment)
    12. 40/60 tools magazine with arm type ATC
    13. Enclosed sheet metal guard with roof
    14. Helical bladed screw conveyor on table sides
    15. Chip cart
    16. Air conditioner for electrical cabinet
    17. XYZ-axis linear scale feedback
    18. 3-axis independent manual pulse generator
    19. Sub table
    20. Rotary table
    21. Interface reserved for fourth axis
    22. Z-axis retract function at power failure
    23. Anti-collision and machining simulation software
    24. Remote monitoring software-Professional
    25. Automatic tool length measurement
    26. Auto workpiece coordinate measurement
    27. Transformer
    28. Auto warm up
