BM Series

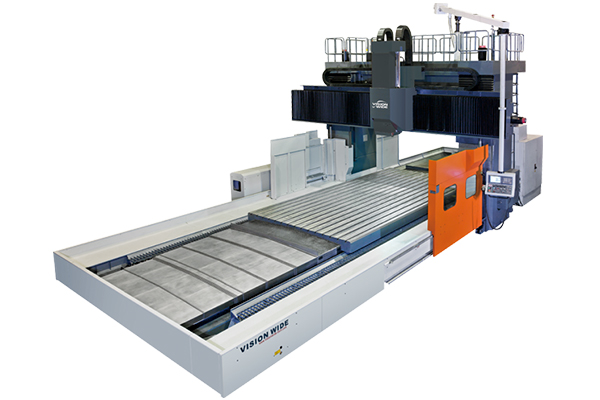

Double Column Machining Center BM Series
  • BM series, a beam moving bridge type CNC milling machine center manufactured by Vision Wide, is specially designed for large workpiece machining which could contain a maximal 2,400mm height of workpieces. Vision Wide applies unique techniques to synchronize W-axis feeding with another axial feeding, and ensure the movable beam’s dynamic straightness and heavy cutting power. We provide X travel from 4,200 mm to 10,200mm, Y travel from 3,000 mm to 4,200 mm, W travel from 1,000 to 1,500 mm, and multi-angle head attachments for automatic machining.

    • BM series 5 faces machines, with typical VW products features of rigid structure and high precision, is unique by the features of movable cross rail and W-axis feed cutting synchronic with another axial feeding. The max. height for workpiece & machining is 2,450mm & 2,400mm.
    • The movable cross rail can be positioned precisely by dual synchronized servo motors driving system. Besides, it can carry precision feeding and heavy cutting on W-axis.
    • The rationing hydraulic system precisely controls the parallelism of cross rail travel, even with different positions of the headstock on the Y-travel. Dual cylinders offer strong support for W-axis smooth movement.
    • Double beams configuration: Fixed beam to keep the best parallelism and maintain the structural rigidity; Movable beam to have the dynamic straightness and sustain the cutting power.
    • A precise clamping device can hold the cross beam tightly, well controlling and supporting the spindle cutting accuracy.
    • Automatic horizontal and vertical tool changer.
    • Automatic head magazine (one head).
    • AH attachment-Automatic 5-face function with 700mm longer Y-travel.
  • MODEL UNIT BM- 4230/ 4237 BM- 5230/ 5237 BM- 6230/ 6237 BM- 8230/ 8237 BM- 10230/ 10237
    X axis mm 4,200 5,200 6,200 8,200 10,200
    Y axis mm 3,000/3,700
    Z axis mm 1,000/1,200(Opt.)/1,400(Opt.)
    W axis mm 1,000/1,200(Opt.)/1,500(Opt.)
    Port width mm 3,000
    Table dimension mm 4,000×2,450 5,000×2,450 6,000×2,450 8,000×2,450 10,000×2,450
    Max. table load kg 16,000 20,000 22,000 24,000 26,000
    Spindle motor (Continuous/ 30 minutes rated) kW 22/26 (30/37Opt.)
    Spindle speed
    (2-step gear)
    rpm 22/26kW: 4,000(Std.)/6,000(Opt.) ; 30/37kW 3000(Opt.)/5500(Opt.)
    Spindle speed
    (direct-driven)
    rpm 8,000(Opt.)/ 10,000(Opt.)
    Spindle taper mm/min ISO NO. 50
    Cutting feed rate mm/min XYZ:1~7,000 W:1,000
    Rapid traverse m/min XY:10
    Z:12
    W:2
    X:8
    Y:10
    Z:12
    W:2
    Positioning accuracy Refer to JIS B6333 mm ±0.01/300, ±0.015 Full travel
    Repeatability Refer to JIS B6333 mm ±0.003
    ATC type/capacity Floor-standing Vertical type tool change pcs 60/90(Opt.)
    Floor-standing type vertical-horizontal tool change( fixed) pcs 40(Opt.)/60(Opt.)
    Floor-standing type vertical-horizontal tool change(random) pcs 60(Opt.)/90(Opt.)
    Machine gross weight kg 67,000/ 69,000 72,000/ 74,000 79,000/ 81,000 93,000/ 95,000 101,000/ 103,000

    MODEL UNIT BM- 4235/ 4242 BM- 5235/ 5242 BM- 6235/ 6242 BM- 8235/ 8242 BM- 10235/ 10242
    X axis mm 4,200 5,200 6,200 8,200 10,200
    Y axis mm 3,500/4,200
    Z axis mm 1,000/1,200(Opt.)/1,400(Opt.)
    W axis mm 1,000/1,200(Opt.)/1,500(Opt.)
    Port width mm 3,500
    Table dimension mm 4,000×3,000 5,000×3,000 6,000×3,000 8,000×3,000 10,000×3,000
    Max. table load kg 20,000 24,000 28,000 32,000 36,000
    Spindle motor (Continuous/ 30 minutes rated) kW 22/26 (30/37Opt.)
    Spindle speed
    (2-step gear)
    rpm 22/26kW: 4,000(Std.)/6,000(Opt.) ; 30/37kW 3000(Opt.)/5500(Opt.)
    Spindle speed
    (direct-driven)
    rpm 8,000(Opt.)/ 10,000(Opt.)
    Spindle taper mm/min ISO NO. 50
    Cutting feed rate mm/min XYZ:1~7,000 W:1,000
    Rapid traverse m/min XY:10 Z:12 W:2 X:8 Y:10 Z:12 W:2
    Positioning accuracy Refer to JIS B6333 mm ±0.01/300, ±0.015 Full travel
    Repeatability Refer to JIS B6333 mm ±0.003
    ATC type/capacity Floor-standing Vertical type tool change pcs 60/90(Opt.)
    Floor-standing type vertical-horizontal tool change( fixed) pcs 40(Opt.)/60(Opt.)
    Floor-standing type vertical-horizontal tool change(random) pcs 60(Opt.)/90(Opt.)
    Machine gross weight kg 70,000/ 72,000 75,000/ 77,000 82,000/ 84,000 98,000/ 100,000 106,000/ 108,000

  • Standard Accessory & Function
    1. FANUC 0iMD controller
    2. 4,000rpm 2-step gear type spindle
    3. Z-axis travel 1,000mm
    4. Spindle oil cooling device
    5. Twin hydraulic cylinders with pressured air assistance balancing system for Z-axis
    6. Two hydraulic cylinders with automatic pressure tuning for W-axis
    7. Hydraulic braking system for W-axis
    8. Absolute pulse coder, dual linear scales for W-axis
    9. Ball screws supporting devices for XY-axis
    10. Overhead pendulum type operation panel
    11. 60T tool magazine (vertical)
      (BM-xx30/35)
    12. Centralized auto lubrication system
    13. Independent lubrication system for four axis
    14. Four piece splash guard
    15. Working lamp & 3-color signal lamp
    16. Air blast through spindle
    17. Movable manual pulse generator (MPG)
    18. Wash gun and pneumatic interface
    19. RJ45 interface
    20. Vision Wide FX graphical user interface
    21. Flood coolant system
    22. Heat exchanger for electrical cabinet
    23. Twin chip screws on table sides
    24. Caterpillar chip conveyor
    25. Adjustment tool and tool kits
    26. Technical manuals(operation, maintenance manual and circuit diagram)
    27. Remote monitoring software-Standard(Not available for Siemens controller)
    Optional Accessory & Function
    1. 3,000/5,500/6,000rpm 2-step gear type spindle
    2. 8,000/ 10,000rpm direct driven spindle
    3. 90T tool magazine (vertical) (BM-xx30/35)
    4. Coolant through tool holder interface (vertical spindle)
    5. Coolant through spindle system (vertical spindle)
    6. Interface preparation for coolant through spindle system (vertical spindle)
    7. Enclosed sheet metal guard (without roof)
    8. Heidenhain linear scale feedback (X, Y, Z)
    9. Z-axis travel 1,200/1,400mm
    10. 200/300/400/500mm higher column(W-axis travel 1,200 mm)
    11. Overhead pendulum type auto lifting operation panel
    12. Air conditioner for electrical cabinet
    13. Sub working table
    14. Oil skimmer
    15. Oil mist cooling device
    16. Rotary table
    17. Interface reserved for rotary table
    18. Automatic tool length measurement (VT2030/TS27R/NC4)
    19. Automatic workpiece measurement (RMP60)
    20. Transformer
    21. 3-axis independent manual pulse generator
    22. Interface preparation for fourth axis
    23. Z-axis retract function at power failure
    24. Anti-collision and machining simulation software
    25. Remote monitoring software-Professional(Not available for Siemens controller)
