GSA Series

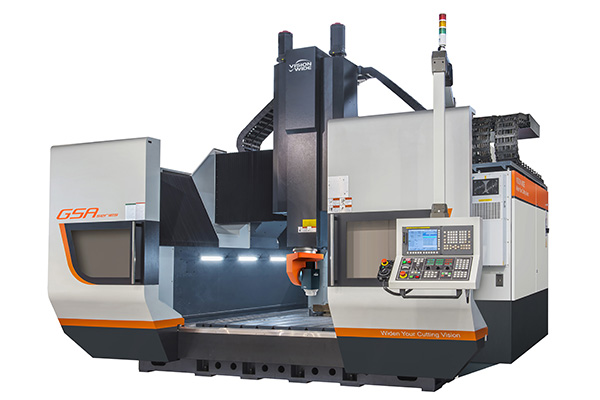

GSA Series Gantry Type Machining Center
  • GSA Series 3+2 axis Gantry Type Machining Center, provided high accuracy performance in mold cutting, highly precise contour finishing, milling, drilling, and tapping. Vision Wide manufactured the IAC-indexing attached head to shorten tool displacement travel and cutting process effectively, and to extend tool lifetime and offer the best choice for composite angle machining. GSA Series had excellent dynamic performance on one-piece structural and equipped IAC 2-axis head to achieve 5-axis accuracy performance.

    • IAC- Indexing Attached head
    • Above 40kW spindle driving capacity
    • Auto tool clamping
    • Auto indexing: B axis 1゚ / C axis 1゚
    • Spindle cooling device
    • High Tool clamping force: 20kN
    • 12,000/15,000/24,000rpm spindle speed
  • Model Unit GSA-1627 GSA-2227 GSA-3027 GSA-4027 GSA-5027 GSA-6027 GSA-2232 GSA-3032 GSA-4032 GSA-5032 GSA-6032
    X axis mm 1,600 2,200 3,000 4,000 5,000 6,000 2,200 3,000 4,000 5,000 6,000
    Y axis mm 2,700 3,200
    Z axis mm 1,000/
    1,200(Opt.)
    1,000/
    1,200(Opt.)
    Table dimension mm 1,600×2,700 2,200×2,700 3,000×2,700 4,000×2,700 5,000×2,700 6,000×2,700 2,200×3,200 3,000×3,200 4,000×3,200 5,000×3,200 6,000×3,200
    Max. table load kg/m2 3000 3000
    Spindle motor
    (S1/S6)
    kW 50/65(Opt.) 50/65(Opt.)
    Spindle speed rpm 15,000/
    12,000(Opt.)/
    24,000(Opt.)
    15,000/
    12,000(Opt.)/
    24,000(Opt.)
    Cutting feed rate mm/min 1~20,000 1~20,000
    Rapid traverse
    (X/Y/Z)
    m/min 32/32/20 32/32/20

  • Standard Accessory & Function
    1. HEIDENHAIN TNC640controller
    2. 15,000 rpm HSK-A100 spindle
    3. 2-axis head centeral monitoring protection system:
      Spindle bearing vibration monitoring
      Spindle and motor temperature monitoring
      B/C-axis motor temperature monitoring
      Spindle cutting load software protection
    4. Spindle cooler system
    5. Spindle ring cutting coolant device
    6. Air blast through spindle
    7. 2-axis Head rotary compensastion system
    8. Z-axis travel 1,000 mm
    9. X/Z axis is driven by dual ballscrew and Y axis is driven by single ballscrew.
    10. X/Y/Z axis high rigidity roller type linear guideway
    11. X axis ball screw support device (axis 4m above)
    12. X axis dual linear scale, Y/Z-axis linear scale
    13. Spindle and structure temperature thermal compensation system
    14. XYZ-axis travel hard limits protection
    15. Centerlized auto lubrication system
    16. Independent lubrication oil collector for 3-axis
    17. Wash gun & pneumatic interface
    18. Vertical type tool magazine 20T
    19. Swiveling arm type operation panel
    20. Movable manual pulse generator
    21. Air conditioner for electrical cabinet
    22. Working lamp
    23. Operation cycle finish and alarm light
    24. RJ45 interface
    25. Enclosed sheet metal guard without roof
    26. Screw type chip conveyor on table sides
    27. Caterpillar type chip conveyor / Water tank
    28. Cutting fluid cooling system
    29. Footswitch for tool clamping/uncplamping
    30. Remote monitoring software CNC TalkBox-standard
    31. Auto power off function
    32. Z-axis retract function at power failure
    33. Foundation pads and bolts kits
    34. Adjustment tool and tool kits
    35. Technical manuals(operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. HEIDENHAIN DCM (Dynamic Collision Monitoring)
    2. 12,000 rpm HSK-A100 spindle
    3. 24,000 rpm HSK-A63 spindle
    4. Z-axis travel 1,200 mm
    5. Vertical type tool magazine 32/40/60T
    6. Coolant through spindle system:20 bar / 60 bar
    7. Oil mist cooling device
    8. Oil skimmer
    9. Helical blade screw conveyor on table sides
    10. Dual belt type chip conveyor / Water tank
    11. without chip auger / without chip conveyor / without tank
    12. Foot pad above chip groove
    13. Chip cart
    14. Enclosed sheet metal guard with roof
    15. Sub working table
    16. XYZ-axis independent manual pulse generator
    17. Remote monitoring software CNC TalkBox-professional
    18. Auto tool length measurement
    19. Auto workpiece measurement
    20. Automatic correction software of rotary axis error
    21. Spindle vibration protection device
    22. Transformer
    23. Oil mist recycle device
