SM Series

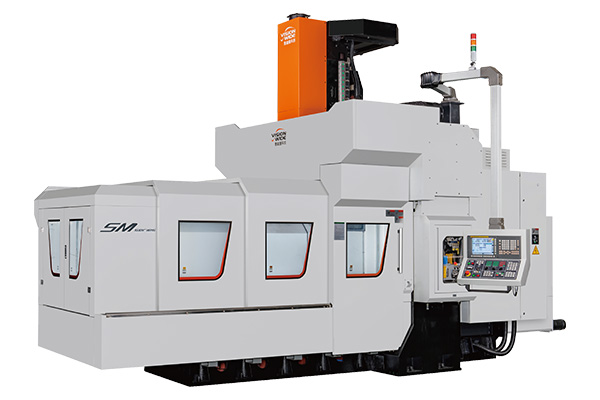

Double Column Machining SM series

  • The structural analysis and optimization of the SM machine model stabilizes the structure of the fuselage and provides the best high dynamic rigidity when the machine moves at high speed.

    High-precision positioning and emphasis on positioning accuracy provide the best choice for precision machining of auto parts, small car molds, mold bases, mechanical hardware parts and so on.

    • Large table clamping area
    • Optimized positioning accuracy
    • Y axis increases machining stroke
    • 15m / min high-speed cutting feed
    • Structural design of machine tools for high-torque high-speed cutting applications
    • Torque output of full tooth spindle 1,163Nm (15 / 18.5kW)
  • MODEL  UNIT SM-1613 SM-2113 SM-2613
    X axis mm 1,600 2,100 2,600
    Y axis mm 1,300
    Z axis mm 800 / 1,000
    Table dimension mm 1,800x1,100 2,300x1,100 2,800x1,100
    Max. table load kg 6,000 8,000 10,000
    Spindle power (cont./30 min rated) kW 15/ 18.5
    Spindle speed( Gear type) rpm 6,000
    Spindle Taper - BBT50
    Cutting feed rate mm/min 1~15,000
    Rapid feed rate(X/Y/Z) m/min 20 / 20 / 15
    Positioning accuracy(Refer to JIS B6333) mm ±0.010/Full travel
    Repeatability(Refer to JIS B6333) mm ±0.003
    ATC tool magazine capacity(Opt.) Vertical type pcs 24(Opt.) / 32(Opt.) / 40(Opt.)
    Machine gross weight kg 17,000 19,000 22,000

    MODEL  UNIT SM-1618 SM-2118 SM-2618 SM-3118 SM-2118Y SM-2618Y SM-3118Y
    X axis mm 1,600 2,100 2,600 3,100 2,100 2,600 3,100
    Y axis mm 1,800 2,300
    Z axis mm 800 / 1,000 800 / 1,000
    Table dimension mm 1,800x1,600 2,300x1,600 2,800x1,600 3,300x1,600 2,300x1,600 2,800x1,600 3,300x1,600
    Max. table load kg 7,000 8,000 10,000 12,000 8,000 10,000 12,000
    Spindle power (cont./30 min rated) kW 15/ 18.5 15/ 18.5
    Spindle speed( Gear type) rpm 6,000 6,000
    Spindle Taper - BBT50 BBT50
    Cutting feed rate mm/min 1~15,000 1~15,000
    Rapid feed rate(X/Y/Z) m/min 20 / 20 / 15 20 / 20 / 15
    Positioning accuracy(Refer to JIS B6333) mm ±0.010/Full travel ±0.010/Full travel
    Repeatability(Refer to JIS B6333) mm ±0.003 ±0.003
    ATC tool magazine capacity(Opt.) Vertical type pcs 24(Opt.) / 32(Opt.) / 40(Opt.) 24(Opt.) / 32(Opt.) / 40(Opt.)
    Machine gross weight kg 19,500 22,500 25,500 29,500 23,000 27,000 30,000

    MODEL  UNIT SM-2622 SM-3122 SM-4122 SM-5122 SM-2622Y SM-3122Y SM-4122Y SM-5122Y
    X axis mm 2,600 3,100 4,100 5,100 2,600 3,100 4,100 5,100
    Y axis mm 2,200 2,700
    Z axis mm 800 / 1,000 800 / 1,000
    Table dimension mm 2,800x2,100 3,300x2,100 4,300x2,100 5,300x2,100 2,800x2,100 3,300x2,100 4,300x2,100 5,300x2,100
    Max. table load kg 12,000 14,000 16,000 18,000 12,000 14,000 16,000 18,000
    Spindle power (cont./30 min rated) kW 15/ 18.5 15/ 18.5
    Spindle speed( Gear type) rpm 6,000 6,000
    Spindle Taper - BBT50 BBT50
    Cutting feed rate mm/min 1~15,000 1~15,000
    Rapid feed rate(X/Y/Z) m/min 20 / 20 / 15 20 / 20 / 15
    Positioning accuracy(Refer to JIS B6333) mm ±0.010/Full travel ±0.010/Full travel
    Repeatability(Refer to JIS B6333) mm ±0.003 ±0.003
    ATC tool magazine capacity(Opt.) Vertical type pcs 24(Opt.) / 32(Opt.) / 40(Opt.) 24(Opt.) / 32(Opt.) / 40(Opt.)
    Machine gross weight kg 28,000 32,000 35,000 39,000 28,500 32,500 35,500 39,500

    MODEL  UNIT SM-2622E SM-3122E SM-4122E SM-5122E
    X axis mm 2,600 3,100 4,100 5,100
    Y axis mm 2,700
    Z axis mm 800 / 1,000
    Table dimension mm 2,800x2,100 3,300x2,100 4,300x2,100 5,300x2,100
    Max. table load kg 12,000 14,000 16,000 18,000
    Spindle power (cont./30 min rated) kW 15/ 18.5
    Spindle speed( Gear type) rpm 6,000
    Spindle Taper - BBT50
    Cutting feed rate mm/min 1~15,000
    Rapid feed rate(X/Y/Z) m/min 20 / 20 / 15
    Positioning accuracy(Refer to JIS B6333) mm ±0.010/Full travel
    Repeatability(Refer to JIS B6333) mm ±0.003
    ATC tool magazine capacity(Opt.) Vertical type pcs 24(Opt.) / 32(Opt.) / 40(Opt.)
    Machine gross weight kg 28,500 32,500 36,000 40,000

  • Standard Accessory & Function
    1. Fanuc 0i MF Plus controller
    2. 6,000 rpm, 50# gear type spindle
    3. Z axis travel 800mm
    4. Spindle cooling system
    5. Centralized auto lubrication system
    6. Independent lubrication oil collector
    7. Air blast through spindle
    8. Wash gun and pneumatic interface
    9. Cutting fluid cooling system
    10. Enclosed splash guard(without roof)
    11. Screw type chip conveyor on table sides
    12. Caterpillar type chip conveyor / Water tank
    13. Heat exchanger for electrical cabinet
    14. Swiveling arm type operation panel
    15. Working lamp
    16. Operation cycle finish and alarm light
    17. Movable manual pulse generator
    18. RJ45 interface
    19. Footswitch for tool clamping
    20. XYZ -axis absolute pulse coder feedback
    21. Remote monitoring software-standard(CNC TALK BOX)
    22. Auto power off
    23. Spindle cutting load software protection
    24. XYZ-axis travel hard limits protection
    25. Foundation pads and bolts kits
    26. Adjustment tool and tool kits
    27. Technical manuals(Operation,maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. FANUC 31 iB controller
    2. SIEMENS controller
    3. 10,000rpm, 50# built-in spindle
    4. 10,000rpm, 50# direct-driven spindle
    5. 15,000rpm, 40# direct-driven spindle
    6. Z axis travel 1,000mm
    7. 200 / 300 / 400 / 500mm higher column
    8. Spindle ring cutting coolant device
    9. Coolant through spindle system 20 /70bar
    10. Coolant through tool holder interface
    11. Oil skimmer
    12. Oil mist cooling device
    13. 24T/32T/40T tools magazine with arm type ATC
    14. Enclosed splash guard(with roof)
    15. Helical bladed screw conveyor on table sides
    16. Chip cart
    17. Air conditionrter for electrical cabinet
    18. Transformer
    19. Interface preparation for fourth axis
    20. Auto tool length measurement
    21. Auto workpiece measurement
    22. Spindle load hardware protection
    23. Auto warm up
    24. Anti-collision and machining simulation software
    25. Remote monitoring software-profession(CNC TALK BOX)
    26. XYZ-axis linear scale
    27. Thermal compensation system
    28. CE Certification
    29. Z-axis retract function at power failure


If you are looking for high efficient, high accuracy and durable machining centers, you can trust Vision Wide Tech. Any suggestion, question or commentary regarding CNC machining, please don't hesitate to submit them to our Customer Service Center.
