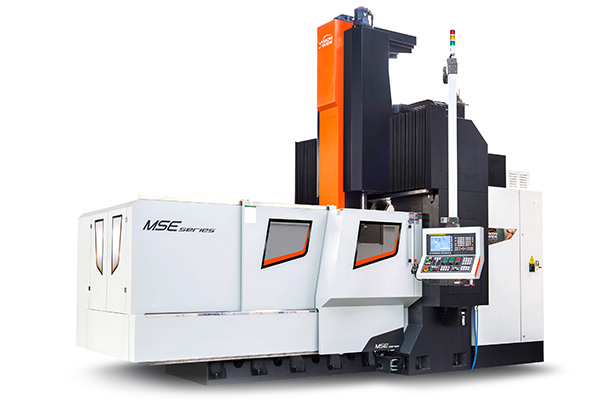

High Efficiency Double Column Milling Machine MSE Series

  • MSE MSEries, a 3-axis portal type CNC High-Speed milling machine center releaMSEd in 2017, and it was designed particularly for mold processing, aluminum alloy machining, and mass removal machining.

    MSE high-speed machining center had a 50% improvement in productivity to the excellent mechanism and structural performance.

    • Spindle speed reaches 24,000 rpm.
    • 20 m/min of feed rate.
    • PreciMSE contour accuracy.
    • Delicate surface roughness.
    • Positioning accuracy P 0.007mm.
    • Repeatability Ps 0.003 mm.
    • Aluminum alloy chips removal rate 5,000 cc/ min.
  • Model Unit MSE-1612 MSE-2112 MSE-2612 MSE-1618 MSE-2118 MSE-2618 MSE-3118
    X axis travel mm 1,600 2,100 2,600 1,600 2,100 2,600 3,100
    Y axis travel mm 1,200 1,800
    Z axis travel mm 800/1,000 (Opt.) 800/1,000 (Opt.)
    Table size mm 1,800x1,100 2,300x1,100 2,800x1,100 1,800x1,600 2,300x1,600 2,800x1,600 3,300x1,600
    Max. table load  kg 8,000 10,000 12,000 8,000 10,000 12,000 14,000
    Spindle power (cont./30 min.) kW 15/ 18.5 15/ 18.5
    Spindle speed rpm 15,000 15,000
    Cutting feed rate mm/min 1-24,000 1-24,000
    Rapid traverse(X/Y/Z)  m/min 24/30 (Opt.) 24/30 (Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. Fanuc 0iMF PLUS controller
    2. Direct driven spindle 15,000 rpm (BBT-40)
    3. Z travel 800 mm
    4. Spindle cooling system
    5. Centralized auto lubrication system
    6. Independent lubrication oil collector for 3 axes
    7. Air blast through spindle
    8. Wash gun and pneumatic interface
    9. Cutting fluid cooling system
    10. Enclosed sheet metal guard with roof
    11. Chip clean flushing device on table side grooves
    12. Caterpillar type chip conveyor / Water tank
    13. Heat exchanger for electrical cabinet
    14. Swiveling arm type operation panel
    15. Working lamp
    16. Operation cycle finish and alarm light
    17. Movable manual pulse generator
    18. RJ45 interface
    19. Footswitch for tool clamping
    20. XYZ axis linear scale feedback
    21. Auto power off function
    22. Spindle cutting load software protection
    23. XYZ-axis travel hard limits protection
    24. Foundation pads and bolts kits
    25. Adjustment tool and tool kits
    26. Z-axis retract function at power failure
    27. Thermal compensation system of spindle
    28. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. FANUC 31iB Controller ; HEIDENHAIN TNC 620/640 Controller
    2. Built-in spindle only for FANUC Controller：
      12,000 rpm (#50 / HSK-A100)
      20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63)
    3. Built-in spindle only for HEIDENHAIN Controller：
      15,000 rpm (#50 / HSK-A100)
      18,000 / 20,000 / 24,000 / 28,000 rpm (#40 / HSK-A63)
    4. Direct driven spindle only for FANUC Controller：
      15,000rpm (#40 / HSK-A63)
      10,000 / 12,000rpm (#50 / HSK-A100)
    5. Direct driven spindle only for HEIDENHAIN Controller：
      12,000 / 15,000rpm (#40 / HSK-A63)
      10,000 / 12,000rpm (#50 / HSK-A100)
    6. Rapid traverse (X/Y/Z) 30 m/min
    7. Z axis travel 1,000 mm (+200 mm high column)
    8. Column higher 200 mm
    9. Spindle ring cutting coolant device (Built-in spindle excluded)
    10. Coolant through spindle system 20 / 70 bar
    11. Reserved interface for coolant through spindle system
    12. Oil skimmer
    13. Oil mist cooling device
    14. Oil mist recycle device
    15. Chip clean flushing device on table side grooves
    16. Enclosed sheet metal guard without roof
    17. Helical bladed screw conveyor on table sides
    18. Chip cart
    19. Air conditioner for electrical cabinet
    20. Transformer
    21. Interface reserved for fourth axis
    22. Auto tool length measurement
    23. Auto workpiece coordinate measurement
    24. Spindle load hardware protection
    25. XYZ axis HEIDENHAIN linear scale
    26. CE Regulation
