NFT Series

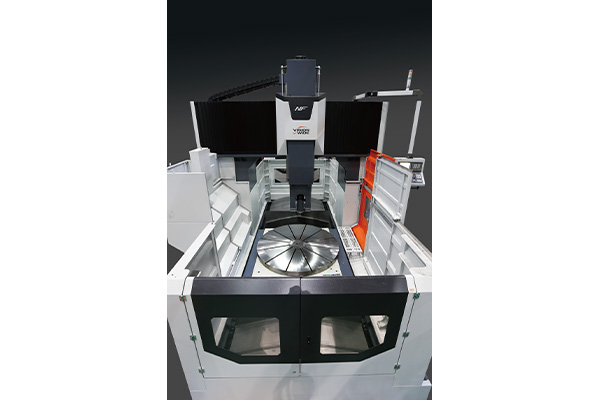

NFT Series 5-Face Bridge Type CNC Milling Machining Center
  • NFT series inherits Vision Wide’s high structural rigidity product design. The addition of a rotary table makes it easier for the engineering, hydraulic, tire mold, turbine blade and all cylindrical workpiece machining.

  • Model Unit  NFT-2223
    X axis mm 2,200
    Y axis mm 2,300
    Z axis  mm 920
    Distance from Vertical Spindle Nose to Table mm 85~1,005
    Distance from Horizontal Spindle center to Table mm 335~1,255
    Table Dimension mm Ø1,800
    Table Load (Central Region) kg 3,000
    Min division accuracy degree 0.001
    Rated Torque Nm 2,040
    Max. Torque Nm 3,800
    Braking Torque Nm 10,210
    Max. Cutting Torque under Braking Nm 7,000
    Tool clamping type - Auto-hydraulic clamping
    Head clamping type - Fixed
    C axis angle - Fixed
    B axis angle degree ±110゚
    B axis index degree 1゚
    Indexing precision - ±0.03/300mm
    Indexing function - Auto angle positioning (B axis)
    Lubrication - Bearing oil-air lubrication
    CTS function - Available for 20/50 bar.
    Spindle cooling - Oil cooling circulation
    Max. cutting Power kW 26
    Spindle speed rpm 4,000

  • Standard Accessory & Function
    1. FANUC 31iB controller
    2. 4,000 rpm box way type 2-step gear spindle
    3. Ztravel 920mm
    4. Spindle oil cooling device
    5. Twin hydraulic cylinders with pressured Nitrogen assistance counterweight System
    6. Rotary Table 1,800mm
    7. Centralized auto lubrication system
    8. Independent lubrication oil collector
    9. Air blast through spindle
    10. Wash gun and pneumatic interface
    11. Cutting fluid cooling system
    12. Vertical type tool magazine 40 tools
    13. Enclosed sheet metal guard without roof
    14. Swiveling arm type operation panel
    15. Screw type chip conveyor on table sides
    16. Caterpillar type chip conveyor
    17. Heat exchanger for electrical cabinet
    18. Working lamp
    19. Operation cycle finish and alarm light
    20. Movable manual pulse generator
    21. Footswitch for tool clamping
    22. RJ45 interface
    23. XYZ-axis absolute pulse coder feedback
    24. XYZ-axis travel hard limits protection
    25. Auto power off
    26. Spindle cutting load software protection
    27. Remote monitoring software (FANUC)
    28. Vision Wide FX graphical user interface
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits
    31. Technical manuals
    Optional Accessory & Function
    1. 6,000 rpm box way type 2-step gear spindle
    2. Vertical type tool magazine 60 tools
    3. Ztravel 1,020mm
    4. Oil skimmer
    5. Z-axis retract function at power failure
    6. Enclosed sheet metal guard with roof
    7. Helical bladed screw conveyor on table sides
    8. Chip cart
    9. XYZ-axis linear scale
    10. 3-axis independent manual pulse generator
    11. Auto tool length measurement
    12. Auto workpiece coordinate measurement
    13. Air conditioning for electrical cabinet
    14. Overhead pendulum type operation panel
    15. Anti-collision and proecess simulation software
    16. Remote monitoring software-Profession
    17. Auto warm up
    18. Transformer
