ADM Series

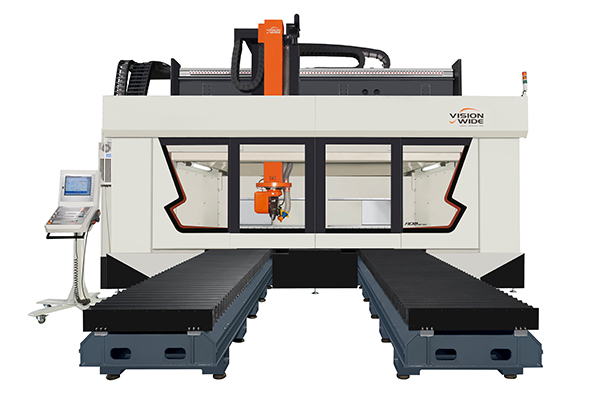

5-axis Composite Material Machining Center ADM Series

  • ADM is a 5-axis machining center to process composite materials with high speed, precision and automation. ADM is aimed at processing materials such as Carbon Fiber Reinforced Polymer (CFRP), Fiberglass, Plastic and Aluminum.

    • Rapid spindle
    • Dual ATC magazines
    • Synchronized 5-axis machining
    • Ultra-low temperature spiral tube cooler
    • Auto pallets changer
    • Enclosed splash guard (with roof)
    • Laser positioning sensor (Opt.)
    • Spindle and ground suction device
  • Model Unit ADM-2638
    X axis mm 2,600
    Y axis mm 3,800
    Z axis mm 1,000
    Table dimension (L x W x Number) mm 2,500 x 1,500 x 2 pcs
    Max. table load kg/m2 3,000
    Spindle speed rpm 24,000
    Spindle power (continuous/30 minute rated) kW(HP) 15 / 18
    Spindle taper - HSK-A63
    Rapid traverse mm/min X,Y:40,000   Z:20,000
    Cutting feedrate mm/min 20,000
    X,Y,Z axis servo motor (power/Q’ty) kW X:9.6/2(pcs)、Y:3.5/2(pcs)  Z:9.6/1(pcs)
    Magazine specification - Carousel
    ATC capacity pcs 16
    Positioning accuracy(VDI3441) mm X: P0.018
    Y: P0.020
    Z: P0.012
    Repeatability(VDI3441) mm X: Ps0.012
    Y: Ps0.018
    Z: Ps0.01
    Flow rate of ground suction device m3/min 400
    Flow rate of spindle suction device m3/min 15
    Machine net weight kg 30,000

  • Standard Accessory & Function
    1. HEIDENHAIN iTNC640 controllerr
    2. Spindle 24,000rpm with tool shank HSK-A63
    3. 2 Pallets changer
    4. ATC/Double magazines (16 tools per magazine)
    5. Air blast through spindle
    6. Independent lubrication oil collector
    7. Centralized auto lubrication system
    8. Portable floor operation panel
    9. Movable manual pulse generator
    10. X axis linear scale feedback, YZ axis absolute pulse coder feedback
    11. XYZ axis travel hard limits protection
    12. Dust suction device: spindle and ground
    13. Fully enclosed sheet metal (with roof)
    14. Heat exchanger electrical cabinet
    15. Footswitch for tool clamping
    16. Wash gun and pneumatic interface
    17. Working lamp
    18. Operation cycle finish and alarm light
    19. RJ45 interface
    20. Remote monitoring software-Standard (Not available for Siemens controller)
    21. M30 auto power-off
    22. Z axis auto pull with power-off
    23. Foundation pads and bolts kits
    24. Adjustment tool and tool kits
    25. Technical manuals: Operation, maintenance manual and circuit diagram
    Optional Accessory & Function
    1. SIEMENS 840D SL controller
    2. YZ linear scale feedback
    3. Arm type operation panel
    4. Transformer
    5. Transformer and Voltage stabilizer
    6. ATC/Double magazines (24 tools per magazine)
    7. ATC/Double magazines (32 tools per magazine)
    8. Auto tool length measurement
    9. Auto workpiece measurement
    10. Air conditioner electrical cabinet
    11. Vacuum chuck
    12. Laser positioning sensor
    13. Ultra-low temperature spiral tube cooler
    14. Remote monitoring software-Professional (Not available for Siemens controller)
