VB Series

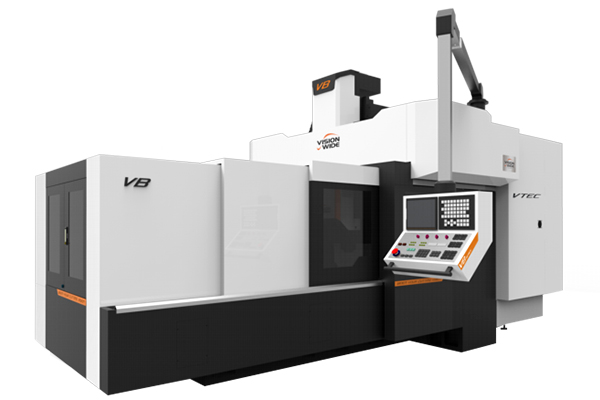

Heavy Duty Cutting Double Column Machining Center VB Series
  • VB series, a CNC milling double column/ bridge machining center, applied box guide ways to display Vision Wide’s delicate scrapping and traditional machinery techniques. VB equipped extraordinary heavy duty cutting ability that met cutting requirements for mold base and components. Meanwhile, there were auto heads attachments for mold surface machining.

    • Three axes movement is fully supported by Harden box way with low friction.
    • Box ways was heat treated to HRC 50 hardness, and was precisely hand scrapping, then assemble and tune to best accuracy to ensure smooth and precise feeding performance.
    • Box-shape with ribs design , main casting structure parts are made of Meehanite grade casting iron with stress- relief heat treatment provide durable, rigid support of the machine.
    • Large size Guide ways are designed with optimal span to carry the table, box-shape bed with strong V-shape enforced ribs allows heavy work piece load.
    • The best center-line layout of spindle system, spindle is close to the Y box way reduce the unbalanced cutting moment and offset of thermal expansion to minimum.
  • Specification/ Model Unit VB-2016 VB-2516 VB-3016 VB-2020 VB-2520 VB-3020 VB-4020
    X aixs mm 2,000 2,500 3,100 2,000 2,500 3,100 4,100
    Y aixs mm 1,600 2,000
    Z aixs
    Box way
    mm 800/1,020(opt.) 800/1,020(opt.)
    Dimension mm 2,000×1,300 2,500×1,300 3,100×1,300 2,000×1,700 2,500×1,700 3,100×1,700 4,100×1,700
    Max. table load kg 8,000 9,000 10,000 9,000 10,000 11,000 12,000
    Spindle motor(cont./30 min. rated) kW 18.5/22 (22/26 opt.)(30/37 opt.) 18.5/22 (22/26 opt.)(30/37 opt.)
    Spindle speed Box way 2-step gear rpm 4,000/6,000(opt.) 4,000/6,000(opt.)
    Belt-driven 8,000(opt.)/10,000(opt.) 8,000/10,000(opt.)
    Spindle taper   ISO 50 ISO 50
    Cutting feed rate mm/min 1-7,000 1-7000
    Rapid traverse m/min X/Y/Z:15 X/Y:12,Z:15 X/Y/Z:15 X/Y:12,Z:15
    Positioning accuracy Refer to JIS B6333 mm ±0.005/300, ±0.010  Full travel ±0.005/300, ±0.010  Full travel
    Repeatability Refer to JIS B6333 mm ±0.003 ±0.003
    ATC capacity pcs 32/40(opt.) 32/40(opt.)
    Machine gross weight kg 25,000 28,000 32,000 27,000 30,000 34,000 35,000

  • Standard Accessory & Function
    1. Fanuc 0i MF Controller
    2. 4,000 rpm two-step gear spindle
    3. Spindle oil cooler
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. X-axis ball screw supporter ( X > 4m above)
    6. Centralized auto lubrication system
    7. Independent lubrication oil collector
    8. Ball screw cooling system
    9. Air blast through spindle
    10. Wash gun and pneumatic interface
    11. Cutting fluid cooling system
    12. 40 tools magazine with arm type ATC
    13. Enclosed splash guard (without roof)
    14. Swiveling arm type operation panel
    15. Screw type chip conveyor on table side
    16. Caterpillar type chip conveyer
    17. Heat exchanger for electrical cabinet
    18. Working lamp
    19. Operation cycle finish and alarm light
    20. Movable manual pulse generator (MPG)
    21. Footswitch for tool clamping
    22. RS232 and RJ45 interface
    23. XYZ-axis absolute pulse coder feedback
    24. XYZ-axis travel hard limits protection
    25. Spindle cutting load software protection
    26. Remote monitoring software-Standard (Not available for Siemens controller)
    27. Auto power off
    28. Vision Wide FX graphical user interface (Fanuc only)
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits (without roof)
    31. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 6,000 rpm 2-step gear spindle
    2. 8,000/10,000 rpm belt-driven spindle
    3. Z-axis travel 1,020mm
    4. 200/300/400/500 mm higher column
    5. Interface preparation for coolant through spindle system
    6. Coolant through spindle system 20/70 bar
    7. Coolant through tool holder interface
    8. Coolant through tool holder 5 bar /20 bar cutting fluid interface
    9. Oil skimmer
    10. Oil mist cooling device
    11. Spindle ring cutting coolant device ( for no head attachment)
    12. 60 tools magazine with arm type ATC
    13. Enclosed splash guard with roof
    14. Chip auger on table side
    15. Chip cart
    16. Air conditioner for electrical cabinet
    17. XYZ-axis linear scale feedback
    18. 3-axis independent manual pulse generator
    19. Sub table
    20. Rotary table
    21. Interface preparation for rotary table
    22. Z-axis retract function at power failure
    23. Anti-collision and machining simulation software
    24. Remote monitoring software-Professional (Not available for Siemens controller)
    25. Automatic tool length measurement
    26. Automatic workpiece measurement
    27. Transformer
    28. Auto warm up
