SF Series

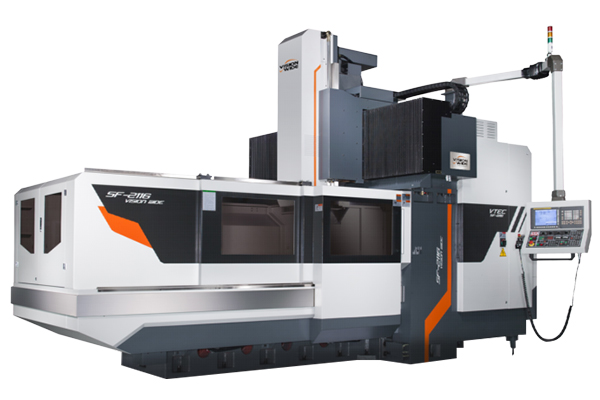

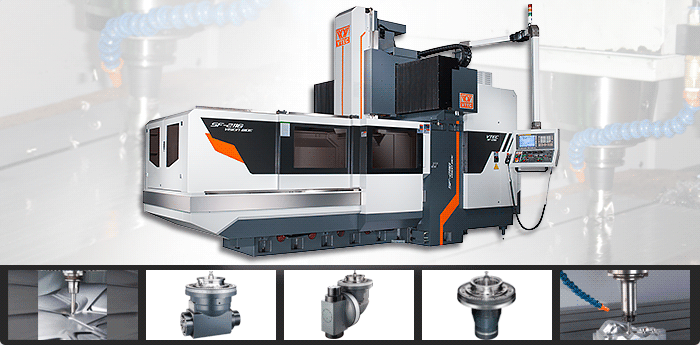

3-Axis Linear Way Double Column Machining Center SF series

  • SF series, the most popular bridge type CNC milling machining center of Vision Wide, is 3-axis linear way design with rapid traverse reaching 24 m / min and cutting feed rate reaching 10 m/ min. Suitable for fine components machining and mold cutting.

    Its full casting structure provides long-term accuracy stability, and an ultra-wide column structure with a big dimension surface provides the best rigid support for the spindle and YZ axis.

    Worth value, excellent manufacturing quality, and a complete range of specifications.

    • Ultra-wide base of X axis with thick high rigidity table enhances table load capacity and ensures the best dynamic level accuracy.
    • Large stepped design of Y axis makes guide ways close to beam and spindle which effectively increases the rigidity of cutting load.
    • Z axis 15m rapid traverse, high acceleration/deceleration performance to achieve contour accuracy of high-speed mold machining.
    • Spindle and thermal compensation function for environmental temperature change can be chosen to ensure the accuracy change within 0.02mm which is influenced by environmental temperature change.
  • Model Unit SF-2116 SF-2616 SF-3116 SF-4116
    X axis travel mm 2,100 2,600 3,100 4,100
    Y axis travel mm 1,600
    Z axis travel Box way mm 800 / 1,020   (Opt.)
    Linear way mm 800 / 1,000   (Opt.)
    Table dimension mm 2,000x1,500 2,500x1,500 3,000x1,500 4,000x1,500
    Max. table load kg 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.)
    Linear way Direct-driven rpm 10,000(Opt.)/ 12,000(Opt.)
    Built-in rpm 10,000(Opt.)
    Cutting federate mm/min 1-10,000
    Rapid traverse(X/Y/Z) m/min XY：24  Z：15 X/Y/Z：18/24/15
    ATC capacity Vertical type tool change pcs 32/40(Opt.)
    Floor-standing type vertical tool change pcs -
    Floor-standing type vertical-horizontal tool change pcs -

    Model Unit SF-2120 SF-2620 SF-3120 SF-4120
    X axis travel mm 2,100 2,600 3,100 4,100
    Y axis travel mm 2,000
    Z axis travel Box way mm 800 /1,020 (Opt.)
    Linear way mm 800 /1,000 (Opt.)
    Table dimension mm 2,000x1,800 2,500x1,800 3,000x1,800 4,000x1,800
    Max. table load kg 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.)
    Linear way Direct-driven rpm 10,000(Opt.)/ 12,000(Opt.)
    Built-in rpm 10,000(Opt.)
    Cutting federate mm/min 1-10,000
    Rapid traverse(X/Y/Z) m/min XY：24 / Z：15 X/Y/Z：18/24/15
    ATC capacity Vertical type tool change pcs 32/40(Opt.)
    Floor-standing type vertical tool change pcs -
    Floor-standing type vertical-horizontal tool change pcs -

    Model Unit SF-2123 SF-2623 SF-3123 SF-4123
    X axis travel mm 2,100 2,600 3,100 4,100
    Y axis travel mm 2,300
    Z axis travel Box way mm 800/1,020(Opt.)
    Linear way mm -
    Table dimension mm 2,000x1,500 2,500x1,500 3,000x1,500 4,000x1,500
    Max. table load kg 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.)
    Linear way Direct-driven rpm -
    Built-in rpm -
    Cutting federate mm/min 1-10,000
    Rapid traverse(X/Y/Z) m/min X/Y/Z : 24/20/15 X/Y/Z：18/20/15
    ATC capacity Vertical type tool change pcs -
    Floor-standing type vertical tool change pcs 32/40(Opt.)
    Floor-standing type vertical-horizontal tool change pcs 32(Opt.)/40(Opt.)/60(Opt.)

    Model Unit SF-2127 SF-2627 SF-3127 SF-4127
    X axis travel mm 2,100 2,600 3,100 4,100
    Y axis travel mm 2,700
    Z axis travel Box way mm 800/1,020(Opt.)
    Linear way mm -
    Table dimension mm 2,000x1,800 2,500x1,800 3,000x1,800 4,000x1,800
    Max. table load kg 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.)
    Linear way Direct-driven rpm -
    Built-in rpm -
    Cutting federate mm/min 1-10,000
    Rapid traverse(X/Y/Z) m/min X/Y/Z : 24/20/15 X/Y/Z：18/20/15
    ATC capacity Vertical type tool change pcs -
    Floor-standing type vertical tool change pcs 32/40(Opt.)
    Floor-standing type vertical-horizontal tool change pcs 32(Opt.)/40(Opt.)/60(Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. FANUC 0iMF PLUS controller
    2. 6,000rpm 2-step gear type spindle (Z axis box way)
    3. Spindle cooling system
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. Centralized auto lubrication system
    6. Independent lubrication oil collector
    7. Air blast through spindle
    8. Wash gun and pneumatic interface
    9. Cutting fluid cooling system
    10. 32 tools magazine with arm type ATC
    11. Sheet metal guard (without roof)
    12. Swiveling arm type operation panel
    13. Screw type chip conveyor on table side
    14. Caterpillar type chip conveyor / Water tank
    15. Heat exchanger for electcrical cabinet
    16. Working lamp
    17. Operation cycle finish and alarm light
    18. Movable manual pulse generator
    19. Footswitch for tool clamping
    20. RJ 45 interface
    21. XYZ axis absolute pulse coder feedback
    22. XYZ axis travel hard limits protection
    23. Spindle cutting load software protection
    24. Remote monitoring software-standard
    25. Auto power off function
    26. Vision Wide FX graphical user interface
    27. Foundation pads and bolts kits
    28. Adjustment tool and tool kits
    29. Technical manuals
      (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 4,000rpm 2-step gear type spindle (Z axis box way)
    2. 8,000/ 10,000rpm belt-driven spindle
    3. 10,000(BT-50)/ 12,000(BT-40)rpm direct-driven spindle
    4. Z axis travel 1,020mm(box way spindle head, for AC head attachment)
    5. Z axis travel 1,000mm(linear way spindle head)
    6. 200/ 300/ 400/ 500mm higher column(SF-xx12 series only for 200mm higher column)
    7. Spindle ring cutting coolant device（for no head attachment）
    8. Coolant through spindle system 20/70 bar（Vertical spindle）
    9. Coolant through tool holder interface
    10. Coolant through tool holder 5/20 bar cutting fluid interface
    11. Oil skimmer
    12. Oil mist cooling device
    13. 40/60 tools magazine with arm type ATC
    14. Enclosed sheet metal guard with roof
    15. Helical bladed screw conveyor on table sides
    16. Chip cart
    17. Air conditioning for electrical cabinet
    18. XYZ axis linear scale feedback
    19. 3 axis independent manual pulse generator
    20. Sub working table
    21. Rotary table
    22. Interface reserved for fourth axis
    23. Spindle cutting load hardware protection
    24. Z axis retract function at power failure
    25. Anti-collision and process simulation software
    26. Remote monitoring software-professional
    27. Auto tool length measurement
    28. Auto workpiece coordinate measurement
    29. Transformer
    30. Auto warm up function
    31. Spindle and structure temperature thermal compensation system
