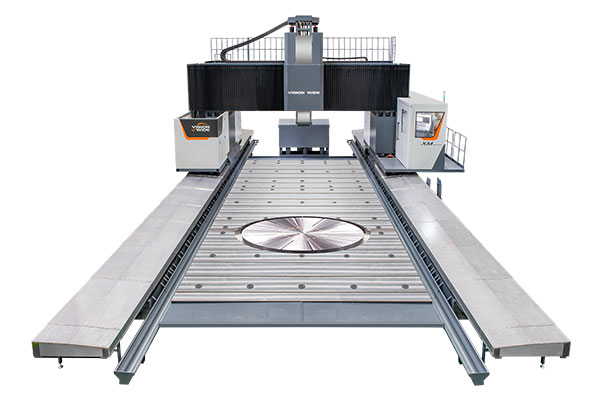

XML Series

Extremely Mighty Machining Center
Extremely Mighty Machining Center
  • High Performance and Wide Application
    XM series moving column machining center is a product developed for the machining needs of large-scale precision machinery, electric power, wind power, energy, petrochemical, transportation... and other equipment. It has:



    • Huge workpiece machining space: For precision machining of various types of structural parts, it can provide super large XYZ axis machining space.
    • High-precise positioning: The high-standard geometric accuracy and positioning accuracy capabilities of the whole machine enable large-scale precision machining
    • Heavy cutting capacity: Provide a variety of high-rated torque spindles to meet the processing and cutting capabilities of various materials.
    • Fully automatic multi-face machining: It can be matched with various automatic attachment heads for high tangential speed mold surface machining and various types of precision parts complex angle machining, with excellent tool tip point error automatic correction function, and automatic additional head and tool exchange function, it can realize fully automatic machining performance.
    • Milling and turning compound multitask: This machine can be equipped with a high-torque and high-speed vertical turning table to realize milling and turning compound automatic machining.
  • Model  Unit XML-37 XML-42 XML-47 XML-57
    X axis travel mm 8,200(+1m)~60,200
    Y axis travel mm 3,700 4,200 4,700 5700
    Z axis travel mm 1,500 / 2,000 / 2,200
    Distance from spindle nose to table Ram size mm 580x580
    Z axis=1,500 mm 850~2,350
    Z axis=2,000 mm 850~2,850
    Z axis=2,200 mm 850~3,050
    Max. workpiece width  mm 3,700 4,200 4,700 5,700
    Table dimension (Width x Length)  m 3 x 8~60m 3.5 x 8~60m 4 x 8~60m 5 x 8~60m
    Max. table load  kg 5,000
    Spindle motor power(cont./30 min. rated) KW 22/26
    Spindle speed 2-step gear rpm 4,000/ 6,000 (Opt.)
    Built-in Motor rpm 8,000 (Opt.) / 12,000 (Opt.)
    Cutting federate mm/min 1-10,000
    Rapid traverse(X/Y/Z)  m/min 20/20/12
    ATC capacity pcs 32 / 40(Opt.) / 60(Opt.) 40 / 60(Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. Fanuc 0iMF PLUS controller
    2. 4,000rpm 2-step gear type spindle
    3. Spindle oil cooler
    4. Z axis travel : 1,500mm
    5. X axis dual linear scale / Z axis linear scale
    6. Z-axis Enclosed box ram type (XML series only)
    7. Y-axis ball screw support device
    8. ATC 32T
    9. Centralized auto lubrication system
    10. Independent lubrication oil collector
    11. Air blast through spindle
    12. Wash gun and pneumatic interface
    13. Cutting fluid cooling system
    14. Four piece sheet metal guard
    15. Wireless manual pulse generator
    16. Confrontable operation room
    17. Screw type chip conveyor on table sides
    18. Caterpillar type chip conveyor / Water tank
    19. Air conditioning for electrical cabinet
    20. Working lamp
    21. Operation cycle finish and alarm light
    22. Footswitch for tool clamping
    23. RJ45 interface
    24. XYZaxis travel hard limits protection
    25. Auto power off function
    26. Spindle cutting load software protection
    27. Remote monitoring software-standard(CNC TalkBox)
    28. Vision Wide FX graphical user interface
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits
    31. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. Fanuc 31iB controller
    2. HEIDENHAIN TNC640 controller
    3. SIEMENS ONE controller
    4. 6,000 rpm box way type 2-step gear spindle
    5. 8,000rpm Built-in spindle
    6. 12,000rpm Built-in spindle
    7. Z axis travel 2,000mm
    8. Z axis travel 2,200mm
    9. Y axis linear scale
    10. Without Tool magazine
    11. Vertical type tool magazine 40 tools
    12. Vertical type tool magazine 60 tools
    13. Vertical-horizontal type tool magazine 32 tools
    14. Vertical-horizontal type tool magazine 40 tools
    15. Vertical-horizontal type tool magazine 60 tools
    16. Coolant through spindle system 20 bar
    17. Coolant through spindle system 70 bar
    18. Oil skimmer
    19. Oil mist cooling device
    20. Spindle ring cutting coolant device (for no head attachment)
    21. Z-axis retract function at power failure
    22. Helical bladed screw conveyor on table sides
    23. Chip cart
    24. Sub working table
    25. Auto tool length measurement
    26. Auto workpiece coordinate measurement
    27. Interface reserved for fourth axis
    28. Transformer
    29. AC attachment head
    30. Multi-heads magazine
    31. Anti-collision and proecess simulation software
    32. Remote monitoring software-standard


  • XML Series

    XM-Workpiece Cutting
