VBT-130 Series

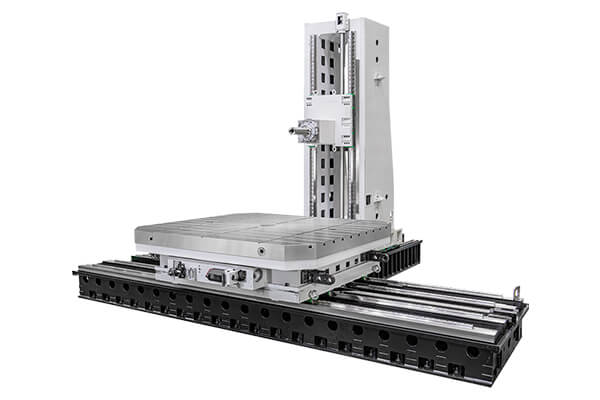

VBT-130 Series Horizontal Boring and Milling Machining Center
    • VBT-130 series are equipped with high precision and high power horizontal boring and milling performance.
    • Large worktable, greatly meet the machining applications of energy petroleum, shipbuilding, large structural parts, construction machinery, diesel engine body etc.
    • The enclosed box ram and the gear box are one-piece casting with greatly improves the rigidity and stability of the Z and W axis, and enhances the cutting ability and precision.
  • Model Unit VBT-130 VBT-130A VBT-130B
    Diameter of Boring Bar mm 130
    W axis mm 700
    Table Dimension mm 1,400 x 1,600
    1,600 x 1,800
    1,800 x 2,200
    2,000 x 2,500
    2,500 x 2,500
    2,500 x 3,000
    X axis mm 2,000 / 2,500
    3,000 / 3,500
    3,000 / 3,500
    4,500 / 5,500
    4,500 / 5,500
    6500
    Y axis mm 2,000 / 2,600 2,600 / 3,200 3,200 / 3,500
    Z axis mm 1,500 / 2,000 1,500 / 2,000 2,000 / 2,500
    Distance from Spindle Center to Table Ctnter mm 0~2,000 0~2,600 0~3,200
    Distance from Spindle Nose to Table Center mm -40~2,160 60~2,260 165~2,2865
    Max. Table Load kg 8,000 / 10,000 / 12,000 15,000 / 20,000 20,000 / 25,000 / 30,000 / 35,000
    Spindle Power kW 22 / 30
    37 / 45 (選購)
    Spindle Torque Nm 3,011 / 4,109
    1,943 / 2,364(選購)
    Spindle Speed rpm 35~3,000
