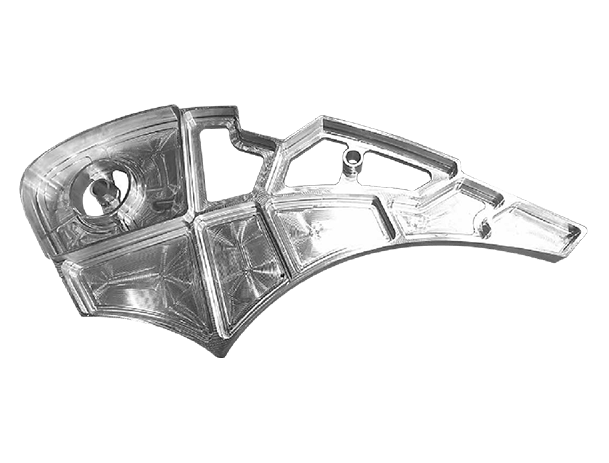

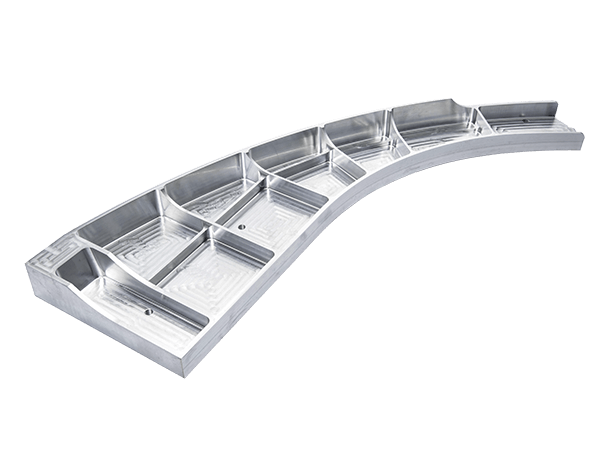

• Aircraft C Shape Frame (half)
  • Aircraft C Shape Frame (half)

    • Model:GSF
    • Material:Al 6061
    • D32 copy milling cutter
    • Removal rate:3,000 cc/min
    • D20 end mill finishing
    • 5-axis synchronized machining
      • Internal pocket wall
      • Inclined wall
      • Reinforce rib top surface
    Cutting Video

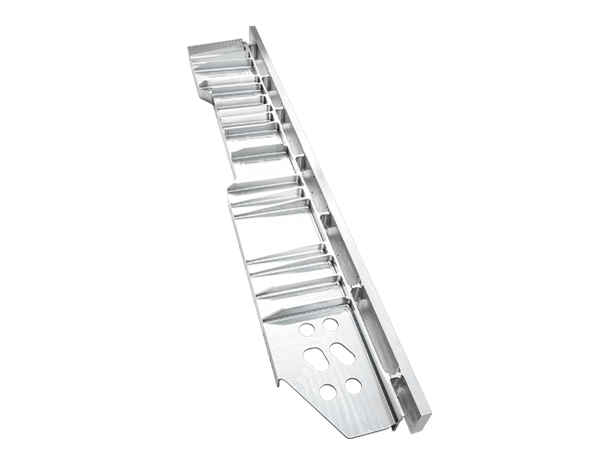

  • Aircraft Wing Rib
  • Aircraft Wing Rib

    • Model:GSF
    • Material:Al 6061
    • Size:L1,225 x W625 x H55 mm
    • Finished / row material ratio:84%
    • High-efficiency machining of D63 copy milling cutter
    • 5 axis synchronized finishing with D20 end mill
    • Side fillet machining with horizontal orientation
    • One setup, Total finish time:3hr.
    Cutting Video

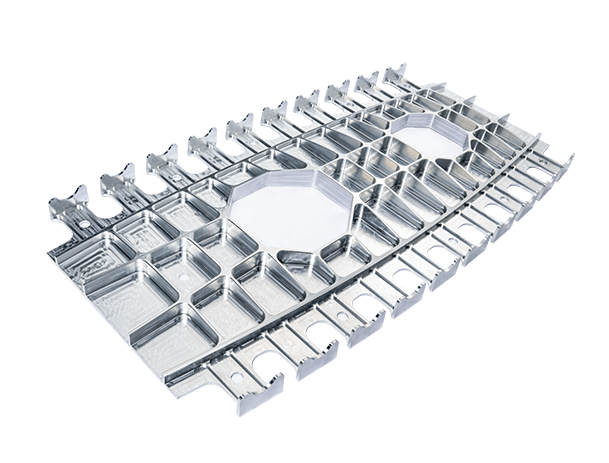

  • Alumina Frame
  • Alumina Frame

    • Model:SE
    • Material:Al6061
    • Size:L1,425 x W680 x H70 mm
    • 24 m/min feedrate
    • D25 end mill Equal TEA tool path
    • High cutting depth 70mm. 2.8 times tool diameter-cutting depth ratio (D/Ap)
    • Spindle speed : 10,500 rpm
    • Feed rate : 24,000 mm/min
    • Cutting capacity:1,00 cc/min-kW
    Cutting Video

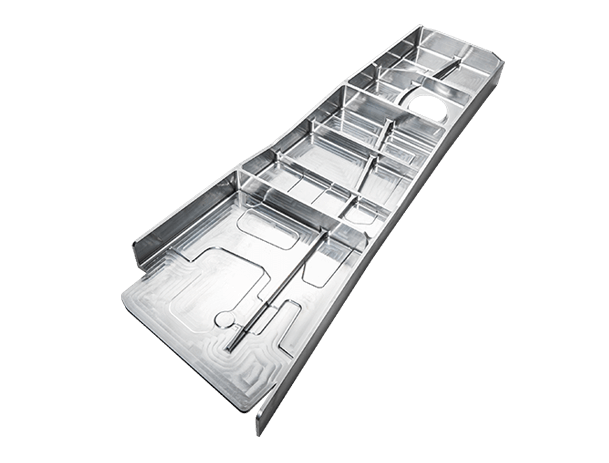

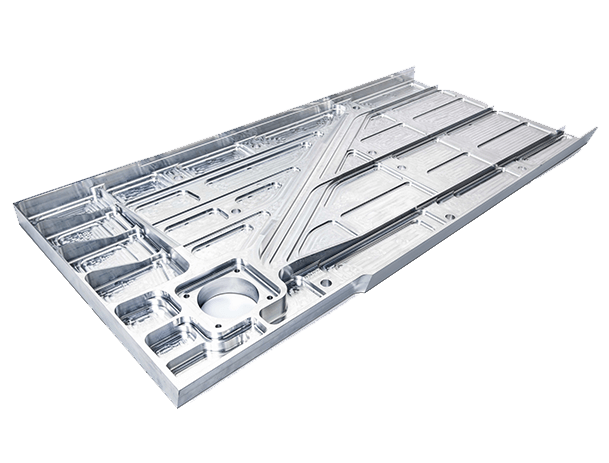

  • Aircraft Floor Frame
  • Aircraft Floor Frame

    • Model:GSF
    • Material:Al 6061
    • Size:L1,250 x W620 x H60 mm
    • Finished /row material ratio:85%
    • High-efficiency machining of D63 copy milling cutter
      • Ae50mm ; Ap20mm ;
      • Removal rate:5,000cc/min
    • One setup, Total finish time:3.4hr.
    • 5-axis synchronized machining
    Cutting Video

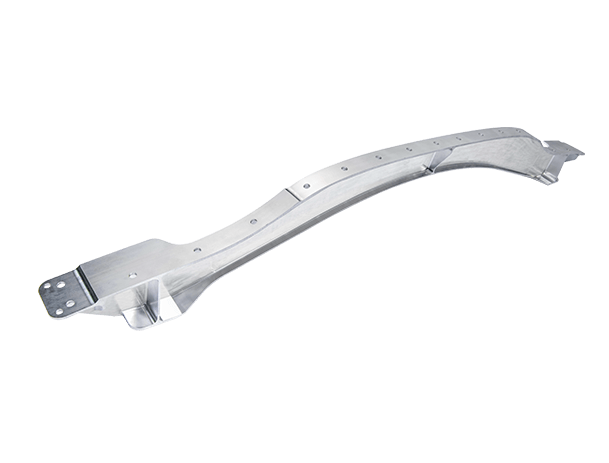

  • Aircraft Frame
  • Aircraft Frame

    • Model:SE
    • Material:Al 6061
    • Size:L1,255 x W480 x H85mm
    • D32 copy milling cutter
    • Ap: 10mm / Ae: 20mm
    • Spindle speed : 12,000rpm
    • Feed rate: 9,000mm/min
    • Trochoidal cutting with copy mill tool
    • High speed feed roughing
    • Finishing thin walls with end mills
    Cutting Video
  • Aircraft H-Beam Frame
  • Aircraft H-Beam Frame

    • Model:GSF
    • Material:Al 6061
    • Size:L1,200 x W180 x H72 mm
    • Finished/row material ratio:96%
    • Horizontal clamping, 2 face machining
    • One setup finish all processing
    • Total finish time:2.4hr
    • 5-axis synchronized machining
    • Minimum wall thickness:2.4mm
    Cutting Video
  • Aircraft Wing Rib
  • Aircraft Wing Rib

    • Model:GSF
    • Material:Al 6061
    • Finished /material ratio:86%
    • Horizontal clamping, 2 face machining
    • One setup finish all processing
    • High removal rate with copy mill tool
      • D32 tool
      • S18,000 rpm, F10,000mm/min
      • Ae24mm. Ap5mm
    • 5-axis synchronized machining

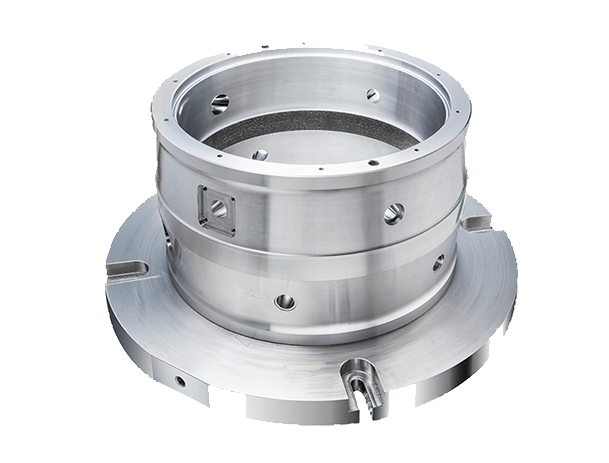

  • Similar Compressor Case Verification Workpiece
  • Similar Compressor Case Verification Workpiece

    • Model:GSF
    • Material:Carbon steel
    • Size:D600mm x H400mm
    • 6 axes mill-turn & multi-task machine
    • One-station machining
    • High accuracy TCPM 0.04mm
    Rough turning -Top surface
    • Spindle Speed:100rpm
    • Feed rate:0.35mm/rev
    • Cutting depth:2mm
    Finishing - Counterbored Hole
    • Finish Tool:D16 end mill
    • Spindle Speed:2,500rev/min
    • Feed rate:4,500mm/min
    Cutting Video

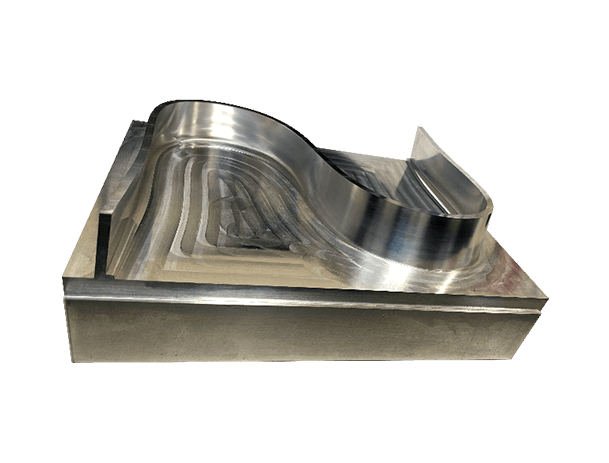

  • S Cutting Test Workpiece
  • S Cutting Test Workpiece

    • Model:GSF/ ASM
    • Material:Aluminum
    • Size:210 x 290 x 180mm
    • 5-axis synchronized machining
    • Spindle speed : 10,500 rpm
    • Feed rate : 4,000mm/min
    • Contour Accuracy ±0.03 mm (ISO standard ±0.05mm)
    Cutting Video

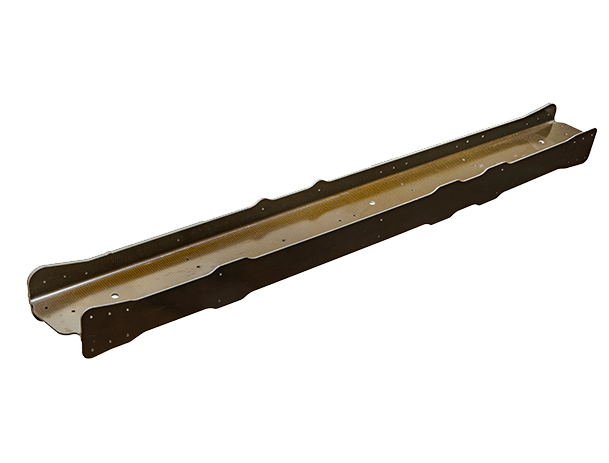

  • Aerospace CFRP structure
  • Aerospace CFRP structure

    • Model : ADM
    • Material : CFRP
    • Size:L1,060 x W120 x H90 mm
    • 5 axis machining with 1 setup process
    • 12,000 rpm High speed slotting process with 5 axis synchronized machining
    • 18,000 rpm high speed drilling avoid delamination
    • -10℃ Spiral tube cooler application, limited the cutting temperature.
    • Dust collection system reducing dust pollution
    • Machining time : 30min

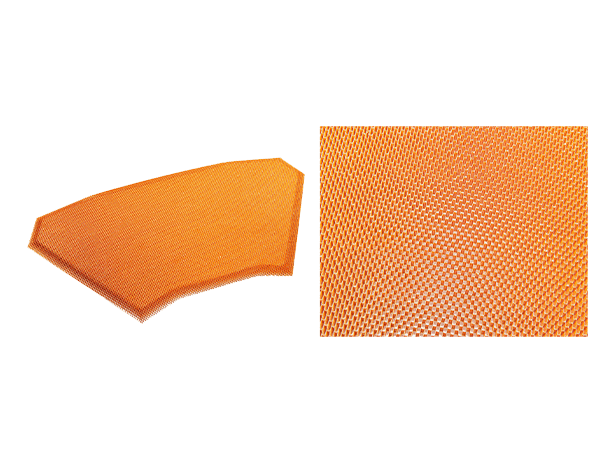

  • Aerospace Nomex Honeycomb structure
  • Aerospace Nomex Honeycomb structure

    • Model : UC
    • Material : Nomes Honeycomb
    • 6 axis ultrasonic machining
    • 20,000Hz ultrasonic cutting with frequency tracing system
    • Oriented ultrasonic blade cutting
    • Rotated ultrasonic disc cutting
    • Vacuum Table for workpiece clamping
    Cutting Video

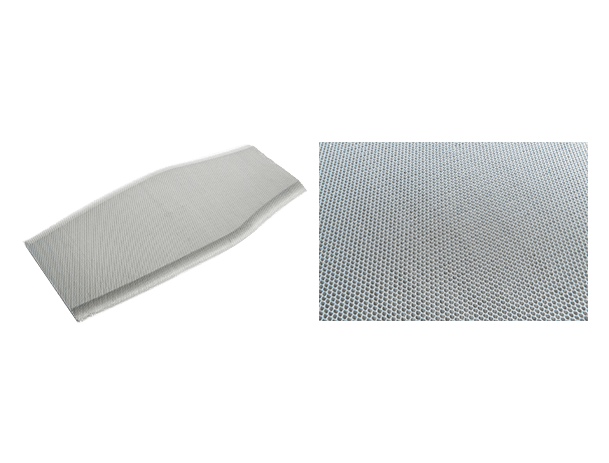

  • Aerospace Aluminium Honeycomb structure
  • Aerospace Aluminium Honeycomb structure

    • Model : UC /GSF
    • Material : Aluminium Honeycomb
    • 5 axis ultrasonic machining
    • 20,000Hz ultrasonic cutting with frequency tracing system
    • Oriented ultrasonic blade cutting
    • Rotated ultrasonic disc cutting
    • Vacuum Table for workpiece clamping
