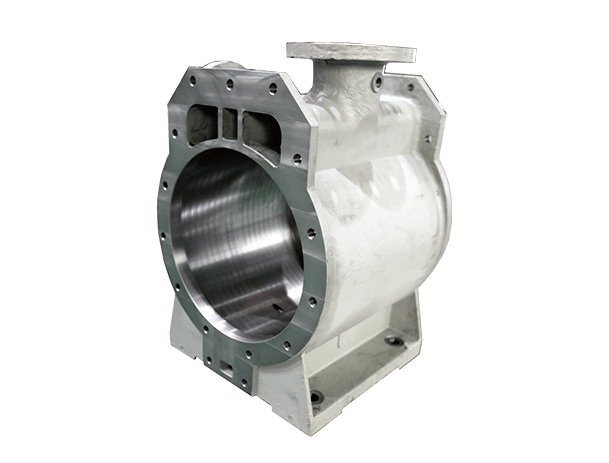

  • Pump

  • Pump

    • Vacuum Compressor Body
    • Model：ASM-FD
    • Material：FCD200
    • Size：W450 x L400 x H610mm
    • Mill-Turning machining
    • With APC function can offline setup, quick workpiece change, effectively reduce machining time by 20%
    • High precision performance
      • Plane Parallelism：0.02mm
      • Axial Concentricity：0.02mm
    Cutting Video

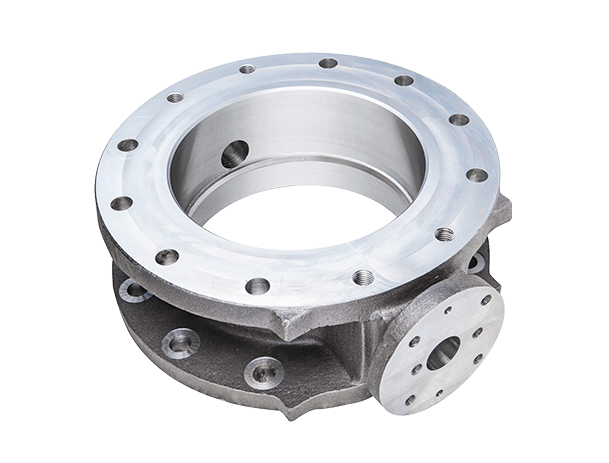

  • Triple Offset Metal Seal Butterfly Valve

  • Triple Offset Metal Seal Butterfly Valve

    • Model：ASM
    • Material：Cast Steel/ Stellite
    • Milling and turning compound machining application
    • X+Y+Z+C, 4 axis synchronized turning for inclined cone surface.
    • Surface roughness：Ra 0.2µm
    • Contour accuracy 0.02mm
    Cutting Video

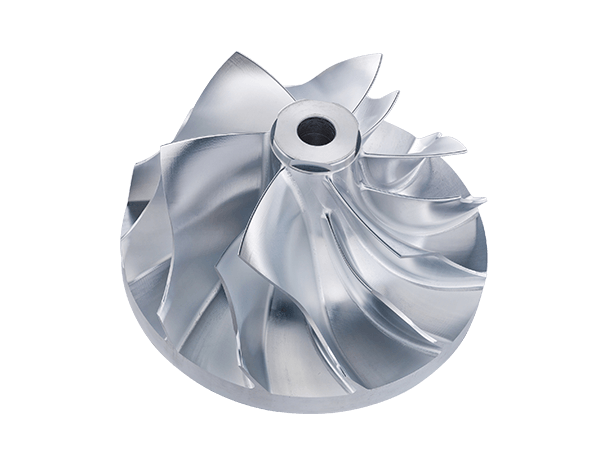

  • Turbine Blade

  • Turbine Blade

    • Model: FA/ ASM
    • Material：Aluminum
    • Size：D300 x H160 mm
    • Aero component machining
    • 5-axis synchronized machining
    • D10 Taped ball nose end mill
    • Spindle Speed：10,000 rpm
    • Feed rate：5,000 mm/min
    • Surrounding cutting
    • Surface roughness：Ra 3.2µm
    Cutting Video

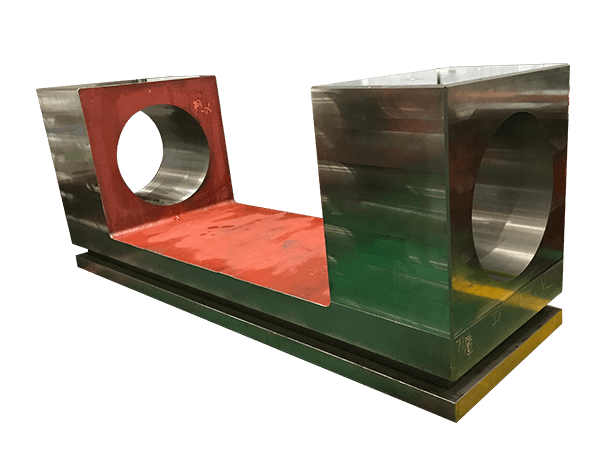

  • Large Opposite - Boring Workpieces

  • Large Opposite - Boring Workpieces

    • Model：F Series/ BM/ XM/ XML/ XMF
    • Material：FC30
    • Size：1,800 x 500 x 700mm
    • Hole Diameter：350mm
    • Hole Depth：350mm
    • Holes’ Coaxiality：0.025mm
    • The excellent precision of the machine
    • 5 axis level Tool Center Point Management
    • AC90°head directly turns the head to opposite boring
    Cutting Video

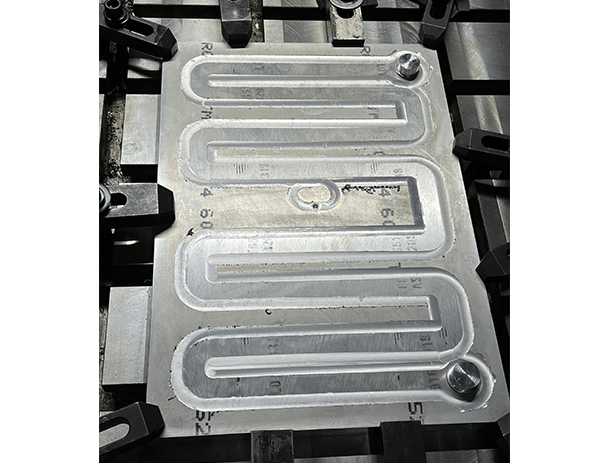

  • Friction Stir Welding - Aluminum Heat Exchanger

  • Friction Stir Welding - Aluminum Heat Exchanger

    • Model: SE/ SF/ F/ SM
    • Material：Aluminum
    • Welding Thickness : 6mm
    • No leakage
    • Low Warpage
    • Environmental Friendly
    • Perfect Welding
    • Well Integrate CNC machining with FSW function.
    Cutting Video
