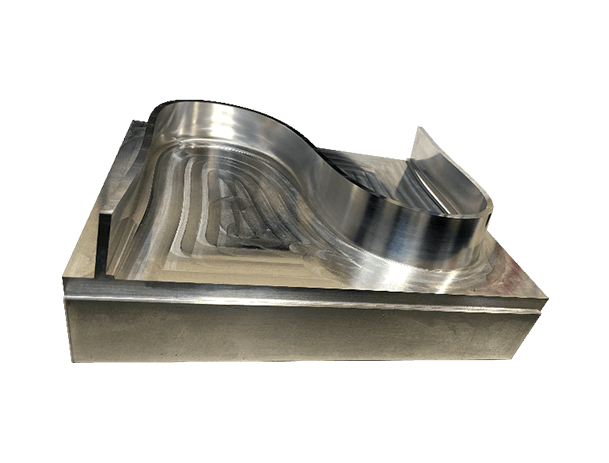

24m High Speed Machining Workpiece
- Material：Al6061
- 24 m high speed machining
- Equal TEA tool path
- 70 mm long tool machining
- Tool：D25R1 end mill
- Spindle speed：10,500rpm
- Feed rate : 24,000 mm/min
-

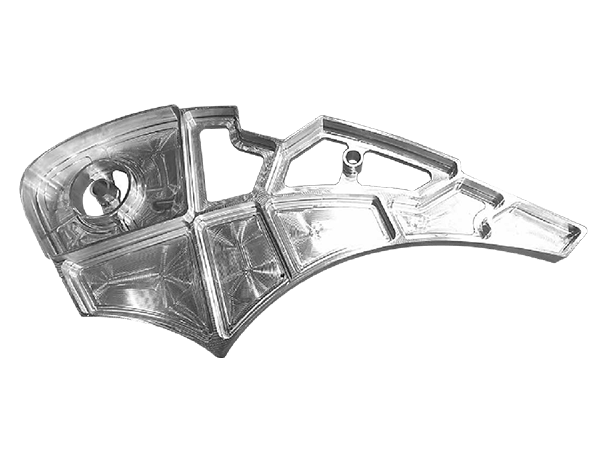

Aircraft C Shape Frame (half)
- Model：GSF
- Material：Al 6061
- D32 copy milling cutter
- Removal rate：3,000 cc/min
- D20 end mill finishing
- 5-axis synchronized machining
- Internal pocket wall
- Inclined wall
- Reinforce rib top surface
-

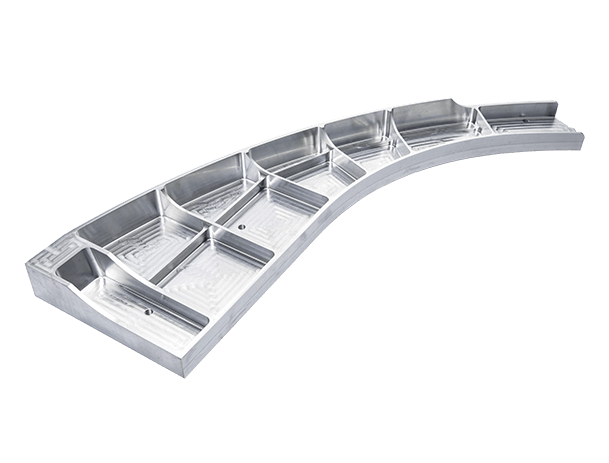

Aircraft Wing Rib
- Model：GSF
- Material：Al 6061
- Size：L1,225 x W625 x H55 mm
- Finished / row material ratio：84%
- High-efficiency machining of D63 copy milling cutter
- 5 axis synchronized finishing with D20 end mill
- Side fillet machining with horizontal orientation
- One setup, Total finish time：3hr.
-
Alumina Frame
- Model：SE
- Material：Al6061
- Size：L1,425 x W680 x H70 mm
- 24 m/min feedrate
- D25 end mill Equal TEA tool path
- High cutting depth 70mm. 2.8 times tool diameter-cutting depth ratio (D/Ap)
- Spindle speed : 10,500 rpm
- Feed rate : 24,000 mm/min
- Cutting capacity：1,00 cc/min-kW
-
Friction Stir Welding - Electric Motor Casing
- Model：GSF
- Material：Al 6061
- Size：L1,250 x W620 x H60 mm
- Finished /row material ratio：85%
- High-efficiency machining of D63 copy milling cutter
- Ae50mm ; Ap20mm ;
- Removal rate：5,000cc/min
- One setup, Total finish time：3.4hr.
- 5-axis synchronized machining
-

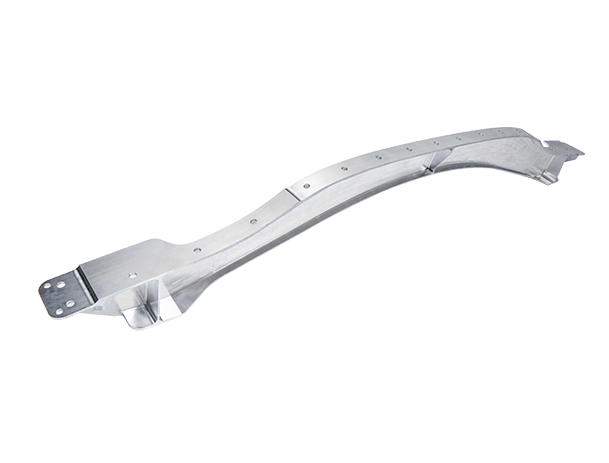

Aircraft Frame
- Model：SE
- Material：Al 6061
- Size：L1,255 x W480 x H85mm
- D32 copy milling cutter
- Ap: 10mm / Ae: 20mm
- Spindle speed : 12,000rpm
- Feed rate: 9,000mm/min
- Trochoidal cutting with copy mill tool
- High speed feed roughing
- Finishing thin walls with end mills
-

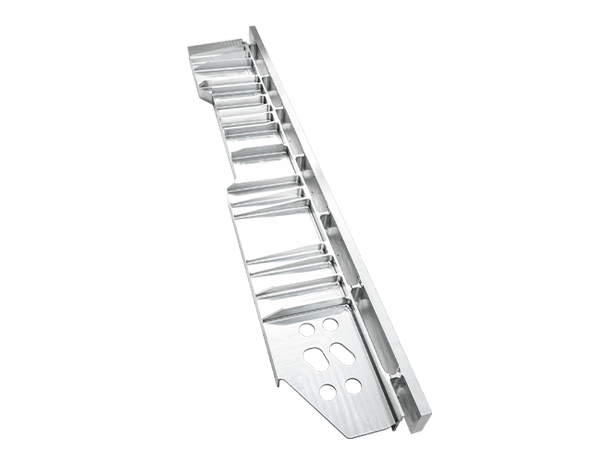

Aircraft H-Beam Frame
- Model：GSF
- Material：Al 6061
- Size：L1,200 x W180 x H72 mm
- Finished/row material ratio：96%
- Horizontal clamping, 2 face machining
- One setup finish all processing
- Total finish time：2.4hr
- 5-axis synchronized machining
- Minimum wall thickness：2.4mm
-
Aircraft Wing Rib
- Model：GSF
- Material：Al 6061
- Finished /material ratio：86%
- Horizontal clamping, 2 face machining
- One setup finish all processing
- High removal rate with copy mill tool
- D32 tool
- S18,000 rpm, F10,000mm/min
- Ae24mm. Ap5mm
- 5-axis synchronized machining
-
S Cutting Test Workpiece
- Model：GSF/ ASM
- Material：Aluminum
- Size：210 x 290 x 180mm
- 5-axis synchronized machining
- Spindle speed : 10,500 rpm
- Feed rate : 4,000mm/min
- Contour Accuracy ±0.03 mm (ISO standard ±0.05mm)
-
Ball Shape
- Model ：FA / GSF
- Material ：Al6061
- Size：D280 mm
- 5 axis synchronized machining without deceleration
- High synchronized feedrate, F2,000
- High servo control
- Each axis feed > F10,000mm/min
- Finishing Time : <20min
- Surface accuracy ：<±0.02mm
-
-
Friction Stir Welding - Aluminum Vacuum Chamber
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Welding Thickness : 10mm
- Perfect Welding
- Well Integrate CNC machining with FSW function.
-

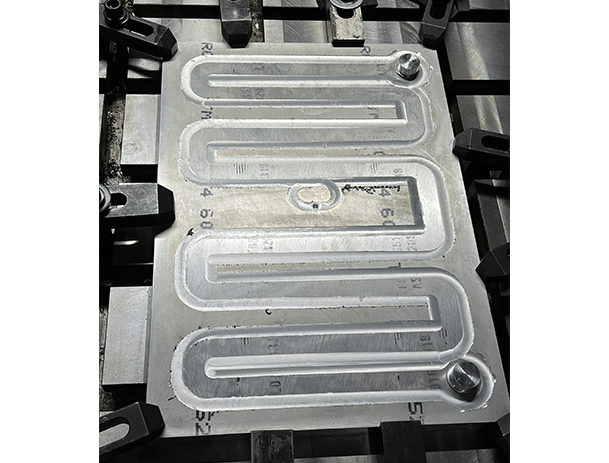

Friction Stir Welding - Aluminum Heat Exchanger
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Welding Thickness : 6mm
- No leakage
- Low Warpage
- Environmental Friendly
- Perfect Welding
- Well Integrate CNC machining with FSW function.
-
Friction Stir Welding - Aluminum Heat Exchanger
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Thickness : 6mm
- Constance Pressure FSW tool
- Zero leakage
- Low Warpage
- Environmental Friendly
- Smooth Welding Patten
-
Friction Stir Welding - Cooling housing for electric vehicle
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Cast aluminum alloy friction stir welding
- Reduce material waste
- Less restricted in cooling channel design
-
Turbine Blade
- Model: FA/ ASM
- Material：Aluminum
- Size：D300 x H160 mm
- Aero component machining
- 5-axis synchronized machining
- D10 Taped ball nose end mill
- Spindle Speed：10,000 rpm
- Feed rate：5,000 mm/min
- Surrounding cutting
- Surface roughness：Ra 3.2µm
-

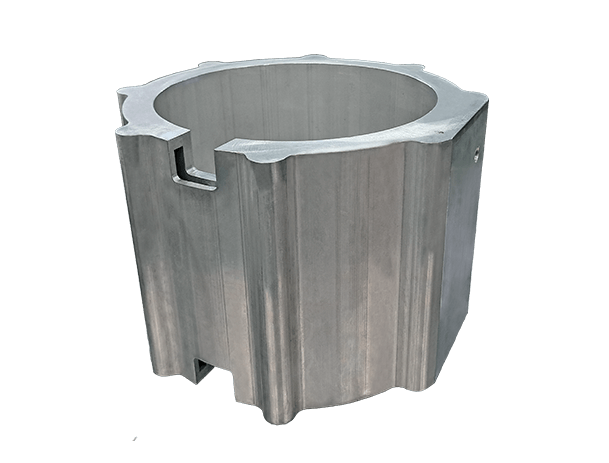

Friction Stir Welding - Electric Motor Casing
- Model : SE/ SF/ F/ SM
- Material：Aluminum
- Thickness: 4mm
- Low Warpage
- Environmental Friendly
- Well Welding
- Well Integrate CNC machining with FSW function.
-

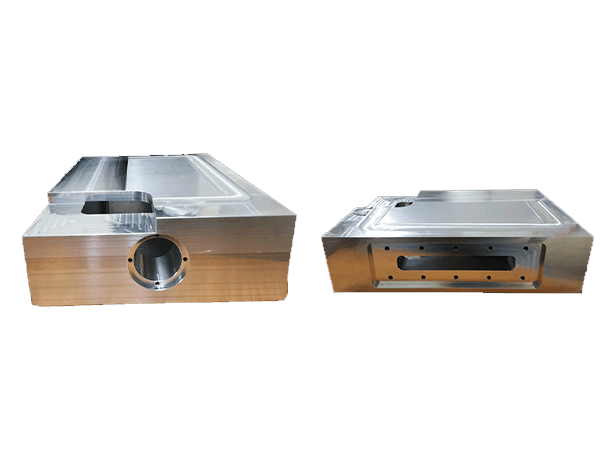

Chamber
- Model: ASM/ GSF/ F
- Material：AI6061
- L800 x W550 x H250mm
- 5 axis machining, workpiece done with 2 operations.
- D200 T-Slot Tool for Roughing
- D80 Monocrystalline Diamond Tool for surface finish machining：S9,000rpm
- Surface roughness : Ra0.04μm
- 0.04 mm high contour accuracy
