VF Series

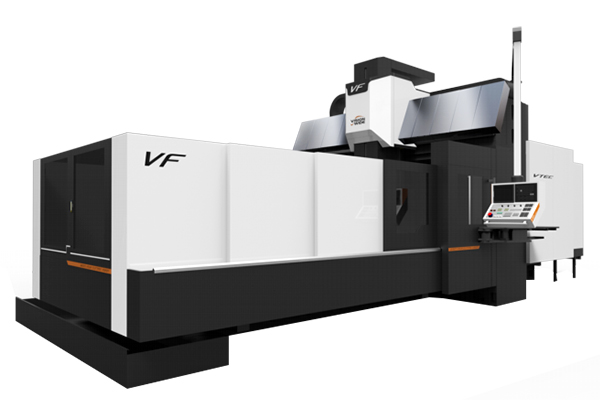

VF Series CNC Double Column Milling Machining Center
  • VF series, classic CNC milling double column/ bridge machining center in Vision Wide product lines, applied box guide ways to display Vision Wide’s delicate scrapping and traditional machinery techniques. VF is equipped with extraordinary heavy duty cutting ability that met cutting requirements for mold base and components. Meanwhile, there were auto heads attachments for mold surface machining.

    The unique design of the sloping beam enabled the center of the Z axis close to the beam.

    • Three axes movement is fully supported by Harden box way with low friction.
    • Box ways was heat treated to HRC 50 hardness and was precisely hand scrapping, then assemble and tune to best accuracy to ensure smooth and precise feeding performance.
    • Box-shape with ribs design, main casting structure parts are made of Meehanite grade casting iron with stress- relief heat treatment provide durable, rigid support of the machine.
    • Large size Guide ways are designed with optimal span to carry the table, box-shape bed with strong V-shape enforced ribs allows heavy work piece load.
    • The best center-line layout of spindle system, spindle is close to the Y box way reduce the unbalanced cutting moment and offset of thermal expansion to minimum.
  • Model Unit VF-3000 VF-4000 VF-5000 VF-3026 VF-4026 VF-5026
    X axis travel mm 3,200 4,200 5,200 3,200 4,200 5,200
    Y axis travel mm 2,300 2,600
    Z axis travel mm 920/1,020(Opt.) 920/1,020(Opt.)
    Table dimension mm 3,200x2,050 4,200x2,050 5,200x2,050 3,200×2,050 4,200x2,050 5,200x2,050
    Max. table load kg 11,000 13,000 15,000 11,000 13,000 15,000
    Spindle power
    (cont. / 30 min.)
    kW 18.5/22(22/26Opt.) (30/37Opt.) 18.5/22(22/26Opt.) (30/37Opt.)
    Spindle speed 2-step gear rpm 4,000/6,000(Opt.) 4,000/6,000(Opt.)
    Cutting feed rate mm/min 1-7,000 1-7,000
    Rapid traverse (X/Y/Z) m/min X/Y/Z:12 X:10 Y/Z:12 X/Y/Z:12 X:10 Y/Z:12
    Tool magazine capacity pcs 40/60(Opt.) 40/60(Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. Fanuc 0iMF PLUS Controller
    2. 4,000 rpm two-step gear spindle
    3. Spindle oil cooler
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. X-axis ball screw supporter ( X > 4m above)
    6. Centralized auto lubrication system
    7. Independent lubrication oil collector
    8. Ball screw cooling system
    9. Air blast through spindle
    10. Wash gun and pneumatic interface
    11. Cutting fluid cooling system
    12. 40 tools magazine with arm type ATC
    13. Enclosed sheet metal guard without roof
    14. Swiveling arm type operation panel
    15. Screw type chip conveyor on table side
    16. Caterpillar type chip conveyor / Water tank
    17. Heat exchanger for electrical cabinet
    18. Working lamp
    19. Operation cycle finish and alarm light
    20. Movable manual pulse generator
    21. Footswitch for tool clamping
    22. RJ45 interface
    23. XYZ-axis absolute pulse coder feedback
    24. XYZ-axis travel hard limits protection
    25. Spindle cutting load software protection
    26. Remote monitoring software-Standard
    27. Auto power off
    28. Vision Wide FX graphical user interface
    29. Foundation pads and bolts kits
    30. Adjustment tool and tool kits
    31. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 6,000 rpm 2-step gear spindle
    2. Z-axis travel 1,020mm
    3. 200/300/400/500 mm higher column
    4. Interface preparation for coolant through spindle system
    5. Coolant through spindle system 20/70 bar
    6. Coolant through tool holder interface
    7. Coolant through tool holder 5 bar /20 bar cutting fluid interface
    8. Oil skimmer
    9. Oil mist cooling device
    10. Spindle ring cutting coolant device ( for no head attachment)
    11. 60 tools magazine with arm type ATC
    12. Enclosed splash guard with roof
    13. Chip auger on table side
    14. Chip cart
    15. Air conditioner for electrical cabinet
    16. XYZ-axis linear scale feedback
    17. 3-axis independent manual pulse generator
    18. Sub table
    19. Rotary table
    20. Interface reserved for fourth axis
    21. Z-axis retract function at power failure
    22. Anti-collision and machining simulation software
    23. Remote monitoring software-Professional (Not available for Siemens controller)
    24. Automatic tool length measurement
    25. Auto workpiece coordinate measurement
    26. Transformer
    27. Auto warm up
